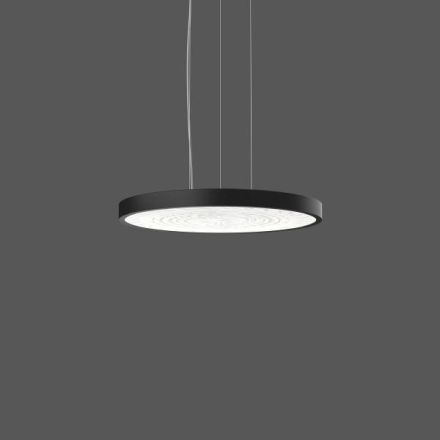

RZB 312293.0031.730 Triona 68W 3000K D:681mm LP12 LED pendant light

RZB 312293.0031.730 Triona 68W 3000K D:681mm LP12 LED pendant light

In stock

SKU: 534621

Price on request

€1,476.60

€0

Overview

Extensive series consisting of:Pendant lights. Ceiling and wall lights. Lateral light coupling with LED. Available in 3 different diameters and visible colors. An extruded aluminum profile just 50 mm flat holds the diffuser. Various design options for the unmistakable surface light:Handcrafted FerroMurano glass. Opal diffuser. Opal/microprismatic diffuser. Light guide and diffuser made of non-yellowing PMMA plastic. Excellent for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. LED service life 50,000 h (L70, B10). Color tolerance: 3x MacAdam (3 SDCM). Tunable White versions dynamically adjustable from 2700 K to 6500 K. Versions with smart+free Bluetooth control for wireless networking and operation via Android / iOS device, free app available for download. Ceiling canopy (D 260 mm, H 40 mm) anodized aluminum. With connecting cable between light and ceiling canopy. With 3-point steel cable suspension, infinitely height adjustable. Light frame powder-coated metal. Diffuser segments (indirect light emission) made of non-yellowing plastic (PMMA) opal. Diffuser (direct light emission) made of hand-made colored glass FerroMurano white. Control device built-in. Light source (LED) included in delivery. With smart+free Bluetooth control module for wireless networking and operation of lights. Energy efficiency class A++

Property	Value
Max. System power:	64 W
Rated luminous flux according to IEC 62722-2-1:	6200 lm
Color temperature:	3000 K
Diameter:	681 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	52 mm
Protection class (IP):	IP20
Protection class:	I
Pendant length:	500 to 1200 mm
Operating device:	LED operating device, current-controlled
Housing material:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	structured glass
Light source:	LED not replaceable
Housing color:	anthracite
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	267 to 291 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	64 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABTriona 68W 3000K D:681mm LP12

Manufacturer

HAN312293.0031.730

GTIN4051859276630

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-16200lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter681 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power64W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth52 mm

LED nominal current at constant current267 to 291 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance64W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length500 to 1200 mm

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass structured

Housing materialOther
