RZB 312294.004.2.730 Triona FerroMurano 61/63W 4400/4600lm LED pendant light

RZB 312294.004.2.730 Triona FerroMurano 61/63W 4400/4600lm LED pendant light

In stock

SKU: 722533

Price on request

€1,558.71

€0

Overview

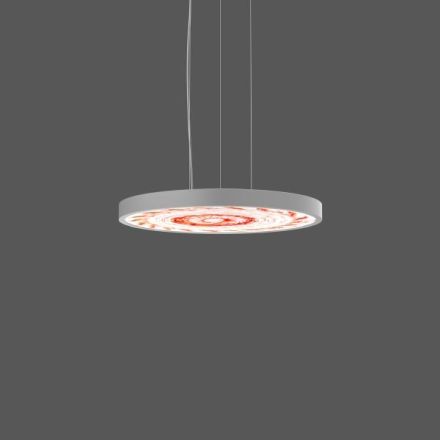

Decorative round LED pendant surface light. Cover made of powder-coated sheet steel. Flat seamless frame made of powder-coated extruded aluminum profile. Canopy made of powder-coated aluminum. Direct light emission via diffuser made of hand-made colored glass FerroMurano red. Indirect light emission via flush-fitting diffuser made of satin-finished plastic. Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling (RZB SIDELITE® technology) for above-average homogeneous luminance distribution and borderless illumination. Light emission direct 70%, indirect 30%. Tunable White versions dynamically adjustable from 2700 K to 6500 K. 3-point steel cable suspension continuously height-adjustable or desired special lengths on request. Easy installation with transparent, shortenable pendant cable and canopy with magnetic fastening. Control gear integrated. With Casambi smart+free Bluetooth® control for wireless networking and operation via Android / iOS device, free app available for download. Ideal for use in Human Centric Lighting (HCL) in conjunction with RZB lighting management systems.

Property	Value
Max. System power:	63 W
Rated luminous flux according to IEC 62722-2-1:	4600 lm
Color temperature:	2700 to 6500 K
Diameter:	681 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	52 mm
Protection class (IP):	IP20
Protection class:	I
Pendant length:	500 to 1200 mm
Operating device:	LED operating device, current-controlled
Housing material:	other
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	structured glass
Light source:	LED not replaceable
Housing color:	silver
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	multi-colored
Voltage type:	AC
LED nominal current at constant current:	254 to 277 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	61 to 63 W
Power factor:	0.98
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABTriona FerroMurano 61/63W 4400/4600lm

Manufacturer

HAN312294.004.2.730

GTIN4051859336150

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14600lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter681 mm

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power61 to 63 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth52 mm

LED nominal current at constant current254 to 277 mA

Power factor0.98

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorMulticolored

Light distributorWithout

Light distributionSymmetrical

Max. system performance63W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length500 to 1200 mm

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass structured

Housing materialOther
