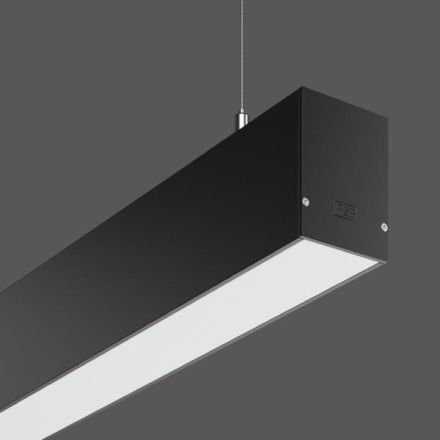

RZB 312321.003.76 Less is more 50 74W 3000K LED pendant light

RZB 312321.003.76 Less is more 50 74W 3000K LED pendant light

In stock

SKU: 534354

Price on request

€786.88

€0

Overview

Improved efficiency, up to 130 lm/W. Integrated control gear. Optimized design. Replaceable and removable LED unit. LED service life 50,000 h (L80, B10). Diffuser made of non-yellowing plastic (PMMA), opal or Alea optics system. Low-beam design. Alea optics system ideally suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Color tolerance: 3-fold MacAdam (3 SDCM). Housing: powder-coated extruded aluminum profile. End caps: powder-coated aluminum. Diffuser made of non-yellowing plastic (PMMA), opal. 2-point steel cable suspension, freely positionable and infinitely height-adjustable (special lengths on request). Replaceable and removable LED unit with integrated control gear. Canopy made of powder-coated aluminum. Light output direct 65% / indirect 35%. Energy efficiency class A++

Property	Value
Max. System power:	74 W
Rated luminous flux according to IEC 62722-2-1:	8450 lm
Color temperature:	3000 K
Length:	1967 mm
Width:	57 mm
Socket:	without
Suitable for number of bulbs:	7
Height/depth:	75 mm
Protection type (IP):	IP20
Protection class:	I
Pendant length:	2000 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	Aluminium
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With Operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	black
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for Emergency light:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	308 to 336 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	74 W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABLess is more 50 74W 3000K

Manufacturer

HAN312321.003.76

GTIN4051859280958

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-18450lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width57 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power74W

Suitable for number of lamps7

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth75 mm

LED nominal current at constant current308 to 336 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1967 mm

Max. system performance74W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length2000 mm

Number of poles5

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
