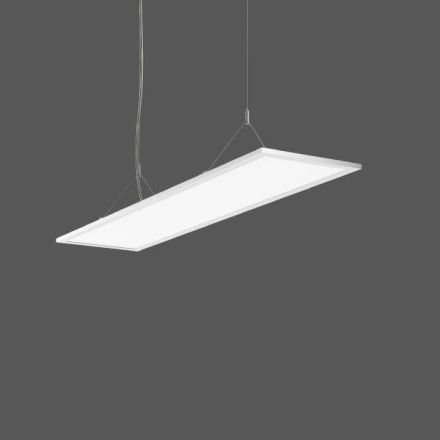

RZB 312374.002.5.76 Sidelite ECO 38W-3000K LP1 LED pendant light

RZB 312374.002.5.76 Sidelite ECO 38W-3000K LP1 LED pendant light

In stock

SKU: 897906

Price on request

€350.76

€0

Overview

Highly aesthetic pendant surface light with an extremely flat construction and progressive LED technology. Frame made of powder-coated aluminum. Diffuser made of microprismatic plastic. Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light injection (RZB SIDELITE® technology) for above-average homogeneous luminance distribution. Light output direct 70%, indirect 30%. 2-point steel cable suspension, continuously height-adjustable. Control gear in the canopy. Excellently suited for office areas (UGR < 19) and computer workstations (BAP) in accordance with DIN EN 12464-1.

Property	Value
Max. System power:	38 W
Rated luminous flux according to IEC 62722-2-1:	4450 lm
Color temperature:	3000 K
Length:	1195 mm
Width:	295 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	12 mm
Protection type (IP):	IP20
Protection class:	II
Pendant length:	300 to 1500 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	Aluminium
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With Operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	structured plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for Emergency light:	no
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	158 to 173 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	38 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABSidelite ECO 38W-3000K LP1

Manufacturer

HAN312374.002.5.76

GTIN4051859499954

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-14450lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width295 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power38W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth12 mm

LED nominal current at constant current158 to 173 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1195 mm

Max. system performance38W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length300 to 1500 mm

Number of poles4

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

Cover materialPlastic structured

Housing materialAluminum
