RZB 312535.002.1 Less is more BeamLine 126W 10900lm 940 LED pendant light

RZB 312535.002.1 Less is more BeamLine 126W 10900lm 940 LED pendant light

In stock

SKU: 804077

Price on request

€885.41

€0

Overview

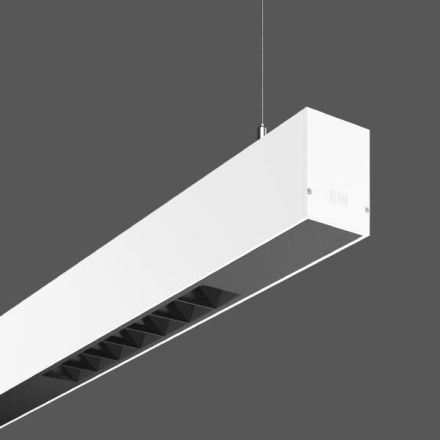

Linear pendant light for aesthetically sophisticated lighting. Light with 4 LED light units. Housing made of powder-coated extruded aluminum profile. End caps made of powder-coated aluminum. LED light unit with MRS technology: mini reflector system made of metallized thermoplastic with prism-shaped black anti-glare frame for pleasant, glare-free light (UGR < 10). 7 reflector elements per LED light unit. Direct light output 67%, indirect 33%. Medium-wide light distribution. 2-point steel cable suspension can be freely positioned and continuously adjusted in height or desired special lengths on request. Replaceable and removable LED unit with integrated operating device. Suitable for through-wiring.

Property	Value
Max. System power:	126 W
Rated luminous flux according to IEC 62722-2-1:	10900 lm
Color temperature:	4000 K
Length:	2248 mm
Width:	57 mm
Socket:	without
Suitable for number of bulbs:	4
Height/depth:	75 mm
Protection type (IP):	IP20
Protection class:	I
Pendant length:	2000 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With control gear:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	other
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	90-100
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	525 to 573 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	yes
Light distributor:	Reflector
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	126 W
Power factor:	0.91
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABLess is more BeamLine 126W 10900lm 940

Manufacturer

HAN312535.002.1

GTIN4051859526629

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-110900lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width57 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI90-100

VersionWithout

Suitable for lamp power126W

Suitable for number of lamps4

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth75 mm

LED nominal current at constant current525 to 573 mA

Power factor0.91

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Length2248 mm

Max. system performance126W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Pendulum length2000 mm

Number of poles3

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
