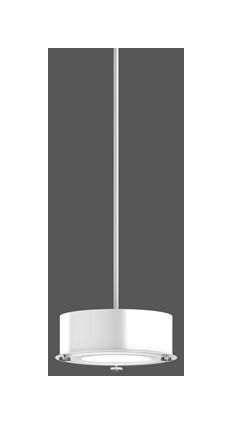

RZB 901629.002.1 Toledo 5W 4000K D160 LP2000 for fabric LED pendant light

RZB 901629.002.1 Toledo 5W 4000K D160 LP2000 for fabric LED pendant light

In stock

SKU: 530871

Price on request

€118.50

€0

Overview

Decorative fabric lampshade for interior design. The basic lamp for the fabric lampshades is the Toledo Flat series. Over 70 different standard colors of the fabric lampshade to choose from. Standard shapes are cylinder and cuboid. Material of the fabric lampshade: chintz or optionally also flame-retardant fabric in accordance with B1. Fabric lampshade can be retrofitted to the base lamp without tools. Optional satin-finished cover panels made of polycarbonate available. Energy-efficient decorative lamp thanks to LED fittings. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). DALI converter suitable for direct current, suitable for central emergency power supply. Ceiling or pendant mounting. Ceiling canopy made of powder-coated sheet steel. Pendant cable with integrated steel cable. Cylindrical housing made of powder-coated sheet steel. Cover ring made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. With fastening system for fabric shades. Control gear built in. Light source (LED) included in delivery. Energy efficiency class A+

Property	Value
Max. System power:	5 W
Rated luminous flux according to IEC 62722-2-1:	360 lm
Color temperature:	4000 K
Diameter:	162 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	90 mm
Protection class (IP):	IP20
Protection class:	I
Pendant length:	2000 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components can be controlled separately:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	21 to 23 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without Dimming function:	yes
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	5 W
Power factor:	0.50
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	other

Characteristics

HABToledo 5W 4000K D160 LP2000 for fabric

Manufacturer

HAN901629.002.1

GTIN4051859187677

Suspension includedYes

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1360lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter162 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power5W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth90 mm

LED nominal current at constant current21 to 23 mA

Power factor0.50

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance5W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Pendulum length2000 mm

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
