RZB 911490.004.2.76 Deecos 15W-4000K Ra92 D60 LED pendant light

In stock
SKU: 897806
€206.91
Into a basketIn the basketGo

Overview

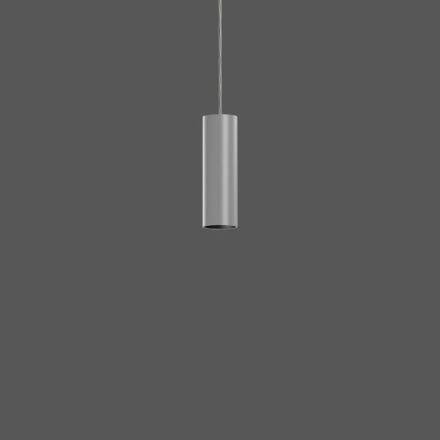

Cylindrical pendant light. Housing made of powder-coated die-cast aluminum. Canopy made of powder-coated sheet steel with magnetic fastening. Optical assembly that can be changed without tools with a lens made of plastic (polycarbonate) for the best homogeneity of the light cone. Black plastic ring with recessed LED for glare control at the sides. Best color rendering Ra>90. Transparent pendant cable 3 m, can be shortened. Operating device with the best properties in terms of flicker-free operation and stroboscopic effect.

Property Value
Max. System power: 16 W
Rated luminous flux according to IEC 62722-2-1: 1250 lm
Color temperature: 4000 K
Diameter: 60 mm
Socket: without
Suitable for number of bulbs: 1
Height/depth: 190 mm
Protection class (IP): IP20
Protection class: I
Pendant length: 3000 mm
Operating device: LED operating device, current-controlled
Suitable for computer workstations in accordance with EN 12464-1: no
With light source: yes
With operating device: yes
Nominal voltage: 220 to 240 V
Suspension included: yes
Light source: LED not replaceable
Housing color: silver
Design of the grid: without
Reflector: without
Suitable for light strip configuration: no
Light distribution: symmetrical
Light emission: direct
Impact resistance: IK06
Luminaire with limited surface temperature 'D-mark': no
Color rendering index CRI: 90-100
Suitable for emergency lighting: no
Light color: white
Type of voltage: AC
LED nominal current at constant current: 67 to 73 mA
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming programmable: no
Dimming DSI: no
Dimming RF: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Rated service life L80/B10 at 25 °C: 50000 h
Without dimming function: no
Light distributor: Focus lens
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Suitable for lamp power: 16 W
Power factor: 0.90
Wiring type: Termination
Number of poles: 4
Conductor cross-section: 2.50 mm²
Connection type: Plug-in terminal

Characteristics

HABDeecos 15W-4000K Ra92 D60
ManufacturerRZB
HAN911490.004.2.76
GTIN4051859739708
Suspension includedYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-11250lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Diameter60 mm
Color temperature4000K
Color rendering index CRI90-100
VersionWithout
Suitable for lamp power16W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Housing colorSilver
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth190 mm
LED nominal current at constant current67 to 73 mA
Power factor0.90
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorFocus lens
Light distributionSymmetrical
Max. system performance16W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionNo
Pendulum length3000 mm
Number of poles4
ReflectorWithout
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
RZB 911490.004.2.76 Deecos 15W-4000K Ra92 D60 LED pendant light
