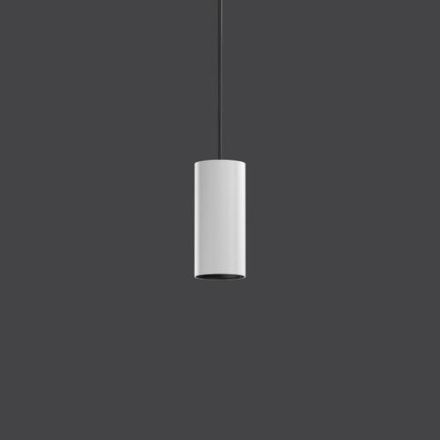

RZB 911519.002.1 Deecos LED/20W-4000K,Ra92 D87 LED pendant light

RZB 911519.002.1 Deecos LED/20W-4000K,Ra92 D87 LED pendant light

In stock

SKU: 938635

Price on request

€183.09

€0

Into a basketIn the basketGo

Overview

Deecos LED/20W-4000K, Ra92 D87 LED pendant light

Property	Value
Max. System power:	20 W
Luminous flux:	2300 lm
Color temperature:	4000 K
Diameter:	87 mm
Socket:	without
Suitable for number of light sources:	1
Height/depth:	195 mm
Protection class:	IP20
Protection class:	I
Pendant length:	5000 mm
Operating device:	LED operating device, current-controlled
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
With suspension:	yes
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Light distribution:	symmetrical
Light emission:	direct
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Color rendering index CRI:	90-100
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
Programmable dimming:	no
DSI dimming:	no
RF dimming:	no
Potentiometer dimming (integrated in the device):	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	20 W
Power factor:	0.90
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	plug-in terminal
Nominal current:	83 to 91 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM2
Luminous flux maintenance at average. Service life 50,000 hours at 25 °C ambient temp.:	90 %
Failure rate for average service life of 50,000 hours at 25 °C ambient temp. (tq):	10 %
Integrated emergency power supply:	no
Luminaire luminous efficacy:	115 lm/W
Glare limitation (UGR):	25.50
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABDeecos LED/20W-4000K,Ra92 D87

Manufacturer

HAN911519.002.1

GTIN4051859827306

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)25.50

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Diameter87 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI90-100

VersionWithout

Suitable for number of light sources1

Suitable for lamp power20W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth195 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy115lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2300lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90 %

Light distributorFocus lens

Light distributionSymmetrical

Max. system performance20W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Rated current83 to 91 mA

Emergency power supply integratedNo

Without dimming functionYes

Pendulum length5000 mm

Number of poles3

ReflectorWithout

Impact resistanceIK06

Protection classIP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC
