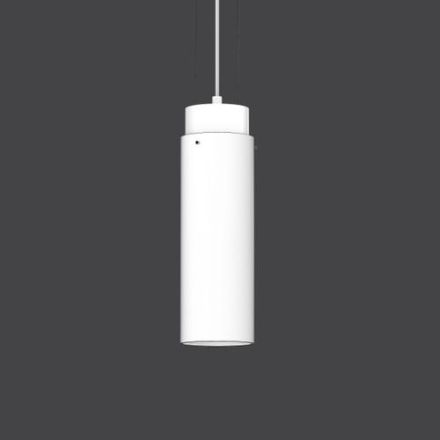

RZB 931184.002.1.76 glass downlight LED/26W-4000K D1 LED pendant light

RZB 931184.002.1.76 glass downlight LED/26W-4000K D1 LED pendant light

In stock

SKU: 937890

Price on request

€443.38

€0

Into a basketIn the basketGo

Overview

Glass downlight LED/26W-4000K D1 LED pendant light

< td>Dimming DMX:

Feature	Value
Max. System power:	26 W
Luminous flux:	3550 lm
Color temperature:	4000 K
Diameter:	150 mm
Socket:	without
Suitable for number of light sources:	4
Height/depth:	470 mm
Protection class:	IP20
Protection class:	I
Pendant length:	500 to 1250 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminium
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
With suspension:	yes
Cover material:	opal glass
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components can be controlled separately:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming line switch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming sine wave reduction:	no
Dimming touch and dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	26 W
Power factor:	0.95
Wiring type:	Termination
Number of poles:	5
Conductor cross-section:	1.50 mm²
Connection type:	Screw terminal
Nominal current:	113 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance for an average service life of 50,000 hours at an ambient temperature of 25 °C:	80 %
Failure rate for an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	10 %
Integrated emergency power supply:	no
Luminaire luminous efficacy:	137 lm/W
Glare limitation (UGR):	22
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	continuously variable
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABGlass downlight LED/26W-4000K D1

Manufacturer

HAN931184.002.1.76

GTIN4051859656104

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter150 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for number of light sources4

Suitable for lamp power26W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth470 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy137lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux3550lm

Luminous flux adjustableContinuously variable

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %

Light distributorWithout

Light distributionSymmetrical

Max. system performance26W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Rated current113mA

Emergency power supply integratedNo

Without dimming functionNo

Pendulum length500 to 1250 mm

Number of poles5

ReflectorWithout

Impact resistanceIK02

Protection classIP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
