Catalog

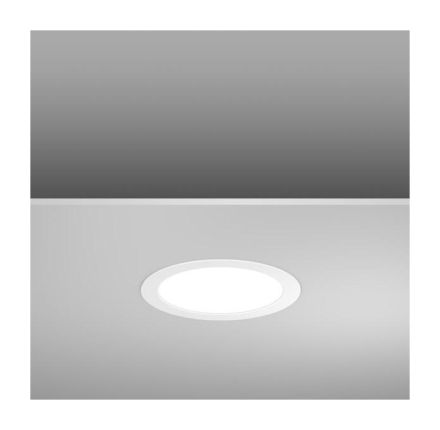

RZB 672224.002.1.04 Toledo Flat 18W 4000K D255 H73 multi-digital LED recessed ceiling spotlight

In stock
SKU: 529989
€501.40
Into a basketIn the basketGo

Overview

Design continuity with general lighting. We offer a comprehensive product range in the field of safety lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. Large luminaire spacing for escape route lighting. Very low maintenance costs thanks to automatic self-test. Super-flat LED recessed downlight. Light guide and diffuser made of non-yellowing PMMA. LED service life 50,000 h (L70, B10). Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (does not apply to diameter D 495 mm). Separate device box with plug connection. Die-cast aluminum housing, powder-coated. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling fastening with spring system. Emergency light module including NiMh battery in a separate control gear housing. Control gear (LED converter) external via plug connection. With connecting cable between the light and the LED converter 300 mm. Single battery system with integrated self-test and feedback can be connected to the Multidigit and MWEB systems. Light source (LED) included in delivery. Energy efficiency class A+

Property Value
Housing color: white
Protection rating (IP): IP54
Protection class: I
Voltage type: AC
Color temperature: 4000 K
Height/depth: 3 mm
Max. System performance: 17 W
Battery type: NiMh
Nominal operating time: 3 h
Rated luminous flux according to IEC 62722-2-1: 1800 lm
Luminous flux in standby mode: 460 lm
Operating device: LED operating device, current-controlled
Light source: LED not replaceable
Impact resistance: IK03
Socket: without
Nominal voltage: 100 to 240 V
With remote switch connection: no
Installation diameter: 234 mm
Cover material: Opal plastic
Outer diameter: 255 mm
With light source: yes
Monitoring device: Monitoring module (centrally supplied system)
Mounting type: Installation
Material of the housing: Aluminium
Suitable for type of marking: other
Feed: decentralized (single battery)
Function: Escape route lighting
With pictogram: no
Suitable for Number of lamps: 1
Number of lamp heads: 1
LED nominal current at constant current: 71 to 170 mA
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: 25 to 35 °C
Power factor: 0.90
Installation height/depth: 100 mm
Type of wiring: Termination
Number of poles: 6
Conductor cross-section: 2.50 mm²
Connection type: other

Characteristics

HABToledo Flat 18W 4000K D255 H73 multidig.
ManufacturerRZB
HAN672224.002.1.04
GTIN4051859175087
Connection typeOther
Type of wiringDiploma
Outer diameter255 mm
Rated luminous flux according to IEC 62722-2-11800lm
Rated ambient temperature according to IEC62722-2-125 to 35 °C
Operating deviceLED control gear current controlled
Installation diameter234 mm
Installation height/depth100 mm
Color temperature4000K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps1
Housing colorWhite
Height/Depth3 mm
LED nominal current at constant current71 to 170 mA
Power factor0.90
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Max. system performance17 W
With light sourceYes
Mounting typeInstallation
Nominal voltage100 to 240 V
Number of poles6
Impact resistanceIK03
IP protection)IP54
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
RZB 672224.002.1.04 Toledo Flat 18W 4000K D255 H73 multi-digital LED recessed ceiling spotlight
RZB 672224.002.1.04 Toledo Flat 18W 4000K D255 H73 multi-digital LED recessed ceiling spotlight
€501.40
Into a basketIn the basketGo
