RZB 672229.002.1.89 Toledo 9W 4000K D190 with AC control. LED recessed ceiling spotlights

RZB 672229.002.1.89 Toledo 9W 4000K D190 with AC control. LED recessed ceiling spotlights

In stock

SKU: 530093

Price on request

€249.55

€0

Overview

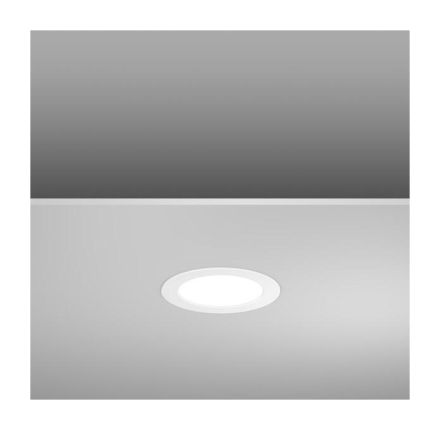

Super-flat LED recessed downlight. For escape route lighting. Housing made of powder-coated die-cast aluminum. Diffuser and light guide made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling mounting with spring system. Includes external operating device via plug connection, 250 mm connecting cable. Suitable for direct current - suitable for central emergency power supply. With AC-Control monitoring module for Luxifair central battery systems. Extremely simple installation of the operating device thanks to the twist-and-plug system.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	I
Voltage type:	AC/DC
Color temperature:	4000 K
Height/depth:	2.50 mm
Max. System performance:	8.70 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	840 lm
Luminous flux in standby mode:	840 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Installation diameter:	170 mm
Cover material:	opal plastic
Outer diameter:	190 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Built-in
Material of the housing:	Aluminium
Suitable for type of marking:	other
Feed-in:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of Lamp heads:	1
LED nominal current at constant current:	36 to 40 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 30 °C
Power factor:	0.95
Installation height/depth:	60 mm
Wiring type:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
