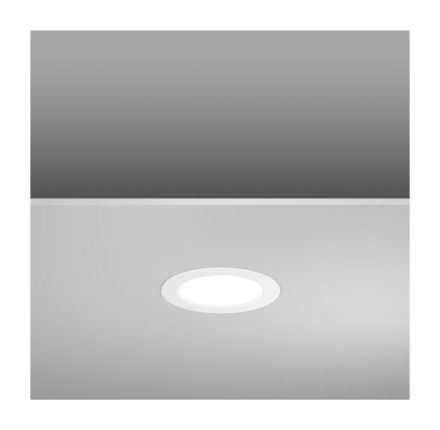

RZB 672229.002.1 Toledo 9W 4000K D190 H103 LED recessed ceiling spotlight

RZB 672229.002.1 Toledo 9W 4000K D190 H103 LED recessed ceiling spotlight

In stock

SKU: 530033

Price on request

€158.70

€0

Overview

Super-flat LED recessed downlight. For escape route lighting. Housing made of powder-coated die-cast aluminum. Diffuser and light guide made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling mounting with spring system. Includes external operating device via plug connection, connecting cable 250 mm. Suitable for direct current - suitable for central emergency power supply. Extremely simple installation of the operating device thanks to the twist-and-plug system.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Type of voltage:	AC/DC
Color temperature:	4000 K
Height/depth:	2.50 mm
Max. System performance:	7.70 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	840 lm
Luminous flux in standby mode:	840 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Installation diameter:	170 mm
Cover material:	opal plastic
Outer diameter:	190 mm
With light source:	yes
Monitoring device:	without
Mounting type:	Built-in
Housing material:	Aluminium
Suitable for marking type:	other
Feed-in:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	32 to 35 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Power factor:	0.95
Installation height/depth:	35 mm
Wiring type:	Termination
Number of poles:	2
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection

Characteristics

HABToledo 9W 4000K D190 H103

Manufacturer

HAN672229.002.1

GTIN4051859175322

Connection typePlug connection

Type of wiringDiploma

Outer diameter190 mm

Rated luminous flux according to IEC 62722-2-1840lm

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Installation diameter170 mm

Installation height/depth35 mm

Color temperature4000K

VersionWithout

FunctionEscape route lighting

Suitable for number of lamps1

Housing colorWhite

Height/Depth2.50 mm

LED nominal current at constant current32 to 35 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light distributorWithout

Max. system performance7.70W

With light sourceYes

Mounting typeInstallation

Nominal voltage220 to 240 V

Number of poles2

Impact resistanceIK03

IP protection)IP54

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialAluminum
