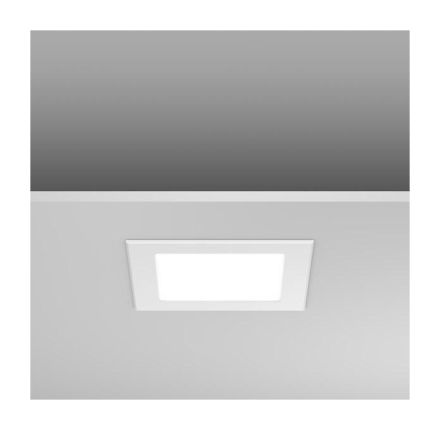

RZB 672236.002.07 Toledo 8W 3000K 172x172 8h DALI LED recessed ceiling spotlight

In stock
SKU: 530073
€487.60
Into a basketIn the basketGo

Overview

Design continuity with general lighting. We offer a comprehensive product range in the field of safety lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. Large luminaire spacing for escape route lighting. Very low maintenance costs thanks to automatic self-test. Super-flat LED recessed downlight. Light guide and plastic diffuser made of non-yellowing PMMA. LED service life 50,000 h (L70, B10). Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (does not apply to diameter D 495 mm). Separate device box with plug connection. Die-cast aluminum housing, powder-coated. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling fastening with spring system. Emergency light module including NiMh battery in a separate operating device housing. External operating device (LED converter) via plug connection. With connecting cable between luminaire and LED converter 300 mm. Single battery system with integrated self-test and feedback via Dali bus exclusively to the RZB monitoring system 985405. Light source (LED) included in delivery. Energy efficiency class A+

Property Value
Housing color: white
Protection rating (IP): IP54
Protection class: I
Voltage type: AC
Color temperature: 3000 K
Length: 172 mm
Width: 172 mm
Height/Depth: 3 mm
Max. System performance: 11 W
Battery type: NiMh
Nominal operating time: 8 h
Rated luminous flux according to IEC 62722-2-1: 730 lm
Luminous flux in standby mode: 160 lm
Operating device: LED operating device, current-controlled
Light source: LED not replaceable
Impact resistance: IK03
Socket: without
Nominal voltage: 200 to 240 V
With remote switch connection: no
Cover material: opal plastic
Installation width: 156 mm
With light source: yes
Installation length: 156 mm
Monitoring device: Monitoring module (centrally supplied system)
Mounting type: Installation
Material of the housing: Aluminium
Suitable for type of marking: other
Feed: decentralized (single battery)
Function: Escape route lighting
With pictogram: no
Suitable for Number of lamps: 1
Number of lamp heads: 1
LED nominal current at constant current: 46 to 55 mA
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: 5 to 35 °C
Power factor: 0.50
Installation height/depth: 110 mm
Type of wiring: Termination
Number of poles: 6
Conductor cross-section: 2.50 mm²
Connection type: other

Characteristics

HABToledo 8W 3000K 172x172 8h DALI
ManufacturerRZB
HAN672236.002.07
GTIN4051859178422
Connection typeOther
Type of wiringDiploma
Rated luminous flux according to IEC 62722-2-1730lm
Rated ambient temperature according to IEC62722-2-15 to 35 °C
Operating deviceLED control gear current controlled
Width172 mm
Installation width156 mm
Installation height/depth110 mm
Installation length156 mm
Color temperature3000K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps1
Housing colorWhite
Height/Depth3 mm
LED nominal current at constant current46 to 55 mA
Power factor0.50
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Length172 mm
Max. system performance11 W
With light sourceYes
Mounting typeInstallation
Nominal voltage200 to 240 V
Number of poles6
Impact resistanceIK03
IP protection)IP54
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
