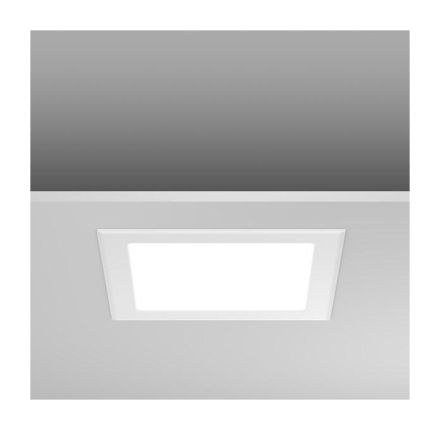

HABToledo 18W 4000K 225x225 3h DALI
HAN672237.002.1.07
GTIN4051859178576
Connection typeOther
Type of wiringDiploma
Rated luminous flux according to IEC 62722-2-11650lm
Rated ambient temperature according to IEC62722-2-15 to 35 °C
Operating deviceLED control gear current controlled
Width225 mm
Installation width208 mm
Installation height/depth100 mm
Installation length208 mm
Color temperature4000K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps1
Housing colorWhite
Height/Depth3 mm
LED nominal current at constant current83 to 100 mA
Power factor0.90
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Length225 mm
Max. system performance20W
With light sourceYes
Mounting typeInstallation
Nominal voltage200 to 240 V
Number of poles6
Impact resistanceIK03
IP protection)IP54
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
