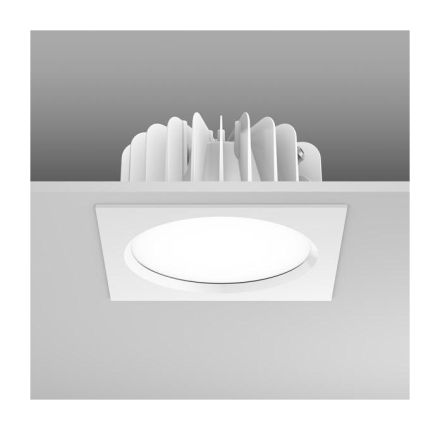

RZB 901455.002.1 33.3W 4000K 220x220x113 white LED recessed ceiling spotlight

RZB 901455.002.1 33.3W 4000K 220x220x113 white LED recessed ceiling spotlight

In stock

SKU: 527575

Price on request

€233.45

€0

Overview

LED downlight for high demands. IP 65 version maintains the protection class even in the false ceiling, thus providing the best protection against the ingress of dirt or moisture. Ball-proof in accordance with DIN 18032-03. With Gore Protective Vents membrane valve as standard to reduce condensation. Suitable for use in the food and beverage industry. Impact-resistant opal plastic disc. Replaceable mains voltage LED. Color rendering Ra 83. LED service life 50,000 h (L70, B30). Color tolerance: 3-fold MacAdam (3 SDCM). Connection directly to 220-240 V AC, i.e. no converter required. Also the square version with a round ceiling cutout. Simple spring fastening for tool-free installation. Cover plate and light housing made of powder-coated die-cast aluminum. Cover disc made of opal plastic. Ceiling fastening with spring system. Light source (mains voltage LED) included. No LED converter required! With 2000 mm connection cable, open cable ends. Passive cooling. With diaphragm valve as standard to prevent condensation. Energy efficiency class A+

tr>

Property	Value
Max. System power:	30 W
Rated luminous flux according to IEC 62722-2-1:	2400 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	111 mm
With operating device:	yes
Suitable for recessed installation:	yes
Length:	220 mm
Width:	220 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	30 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK07
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	2400 lm
Cover material:	Opal plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	125 to 136 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no	Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-40 to 35 °C
Type of wiring:	Termination
Power factor:	0.99
Number of poles:	3
Connection type:	other
Luminous efficacy:	80 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HAB33,3W 4000K 220x220x113 white

Manufacturer

HAN901455.002.1

GTIN4051859054764

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12400lm

Rated ambient temperature according to IEC62722-2-1-40 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width220 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth111 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power30W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current125 to 136 mA

Power factor0.99

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2400lm

Light distributorWithout

Light distributionSymmetrical

Length220 mm

Max. system performance30W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK07

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
