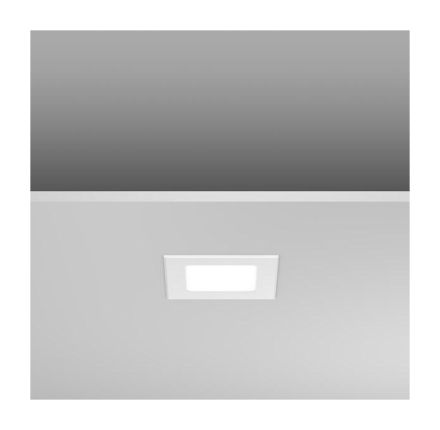

RZB 901485.002.76 5W 3000K 110x110x23 dim. DALI LED recessed ceiling spotlights

In stock
SKU: 528553
€103.50
Into a basketIn the basketGo

Overview

Super-flat LED recessed downlight. Light guide and diffuser made of non-yellowing PMMA plastic. Very low installation depth. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Tunable White versions dynamically adjustable from 2700 K to 6500 K. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (not applicable for diameter D 495 mm). Separate converter box via plug connection. DALI converter suitable for direct voltage, suitable for central emergency power supply. Attachment housing as an accessory for all sizes. Retrofittable decorative cylinders made of chintz fabric as an accessory, optionally with satin polycarbonate cover plate. Areas of application: hallway, adjoining rooms, hotels, restaurants, meeting rooms, private areas. Housing made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling attachment with spring system. Installation depth depends on ceiling thickness. External operating device (LED converter) via plug-in connection. With connecting cable between light and LED converter 250 mm. Light source (LED) included in delivery. Energy efficiency class A+

Property Value
Max. System power: 5 W
Rated luminous flux according to IEC 62722-2-1: 420 lm
Housing color: white
Housing material: aluminum
Protection class (IP): IP54
Socket: without
Light source: LED not replaceable
Protection class: II
With light source: yes
Installation height/depth: 31 mm
With operating device: yes
Suitable for recessed mounting: yes
Length: 110 mm
Width: 110 mm
Height/depth: 3 mm
With motion detector: no
Color temperature: 3000 K
Nominal voltage: 220 to 240 V
Suitable for lamp power: 5 W
Beam angle: extremely wide beam >80°
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Light distribution: symmetrical
Operating device: LED operating device current controlled
Impact resistance: IK06
Luminaire with limited surface temperature 'D-mark': no
Reflector: without
Suitable for number of lamps: 1
Installation width: 96 mm
Installation length: 96 mm
Luminous flux: 420 lm
Material of the cover: plastic opal
Covering of the lamp with thermal insulation material possible: yes
Voltage type: AC/DC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for podium/floor mounting: no
Suitable for truss mounting: no
With light sensor: no
Suitable for surface mounting: no
Suitable for cable system: no
Surface: other
Brushed surface: no
LED nominal current at Constant current: 21 to 23 mA
Dimming depending on the operating device: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (integrated in the device): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: without
Light output: direct
Total harmonic distortion (THD): 0.10
Protection class (NEMA): other
Rated ambient temperature according to IEC62722-2-1: -20 to 35 °C
Type of wiring: Termination
Power factor: 0.90
Number of poles: 4
Conductor cross-section: 1.50 mm²
Connection type: Plug-in terminal
Luminous efficacy: 84 lm/W
Suitable for computer workstations in accordance with EN 12464-1: no
Glow wire test in accordance with IEC 60695-2-11: 650 °C - 30 s
Photobiological safety in accordance with EN 62471: RG0
Color consistency (McAdam ellipse): SDCM4

Characteristics

Total harmonic distortion (THD)0.10
HAB5W 3000K 110x110x23 dim.
ManufacturerRZB
HAN901485.002.76
GTIN4051859097600
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Rated luminous flux according to IEC 62722-2-1420lm
Rated ambient temperature according to IEC62722-2-1-20 to 35 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width110 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation width96 mm
Installation height/depth31 mm
Installation length96 mm
Color consistency (McAdam ellipse)SDCM4
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power5W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth3 mm
LED nominal current at constant current21 to 23 mA
Power factor0.90
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy84lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux420lm
Light distributorWithout
Light distributionSymmetrical
Length110 mm
Max. system performance5W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfaceOther
Brushed surfaceNo
Without dimming functionNo
Photobiological safety according to EN 62471RG0
Number of poles4
ReflectorWithout
Impact resistanceIK06
IP protection)IP54
Protection class (NEMA)Other
Protection classII
Voltage typeAC/DC
AdjustabilityNot adjustable
Cover materialPlastic opal
Housing materialAluminum
