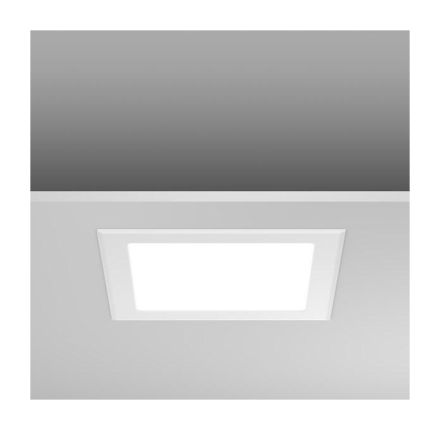

RZB 901487.002.1.76 18W 4000K 225x225x23 dim. DALI LED recessed ceiling spotlights

RZB 901487.002.1.76 18W 4000K 225x225x23 dim. DALI LED recessed ceiling spotlights

In stock

SKU: 528547

Price on request

€140.30

€0

Overview

Super-flat LED recessed downlight. Light guide and diffuser made of non-yellowing PMMA plastic. Very low installation depth. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Tunable White versions dynamically adjustable from 2700 K to 6500 K. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (does not apply to diameter D 495 mm). Separate converter box via plug connection. DALI converter suitable for direct voltage, suitable for central emergency power supply. Attachment housing as an accessory for all sizes. Retrofittable decorative cylinders made of chintz fabric as an accessory, optionally with satin polycarbonate cover plate. Areas of application: hallway, adjoining rooms, hotels, restaurants, meeting rooms, private areas. Housing made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling attachment with spring system. Installation depth depends on ceiling thickness. External operating device (LED converter) via plug-in connection. With connecting cable between light and LED converter 250 mm. Light source (LED) included in delivery. Energy efficiency class A+

Property	Value
Max. System power:	17 W
Rated luminous flux according to IEC 62722-2-1:	1800 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	31 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	225 mm
Width:	225 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	17 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Installation width:	208 mm
Installation length:	208 mm
Luminous flux:	1800 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	other
Surface brushed:	no
LED nominal current at constant current:	71 to 77 mA
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	106 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.10

HAB18W 4000K 225x225x23 dim. DALI

Manufacturer

HAN901487.002.1.76

GTIN4051859095965

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11800lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width225 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width208 mm

Installation height/depth31 mm

Installation length208 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power17 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current71 to 77 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy106lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1800lm

Light distributorWithout

Light distributionSymmetrical

Length225 mm

Max. system performance17 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorWithout

Impact resistanceIK06

IP protection)IP54

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
