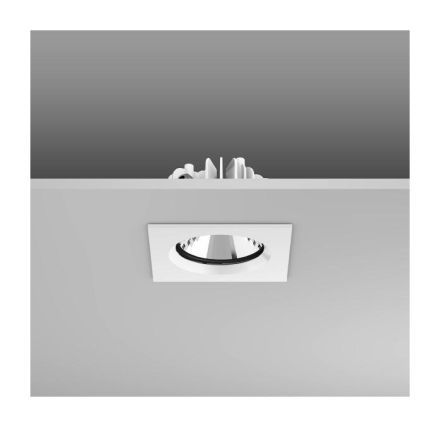

RZB 901531.002.2.76 Ledona Square IP20 16W 1300lm ws DA LED recessed ceiling spotlight

RZB 901531.002.2.76 Ledona Square IP20 16W 1300lm ws DA LED recessed ceiling spotlight

In stock

SKU: 721567

Price on request

€302.57

€0

Overview

LED recessed downlight for the highest demands on technology and design. Die-cast aluminum housing designed as a heat sink. Square cover plate made of die-cast aluminum, powder-coated. The square version also has a round ceiling cutout. Tunable White dynamically adjustable from 2700 K to 6500 K. Tool-free installation thanks to spring fastening. With connected DALI DT8 operating device in a separate device box. With connecting cable L 250 mm. Through-wiring box (5-pin) available as an accessory.

Property	Value
Max. System power:	17 W
Rated luminous flux according to IEC 62722-2-1:	1350 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	105 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	130 mm
Width:	130 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	2700 to 6500 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	16 to 17 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of lamps:	1
Luminous flux:	1350 lm
Covering of the lamp with thermal insulation material possible:	no
Type of voltage:	AC
Light color:	multi-colored
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	67 to 73 mA
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 35 °C
Type of Wiring:	suitable for through-wiring
Power factor:	0.97
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	85 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM4

Characteristics

HABLedona Square IP20 16W 1300lm ws DA

Manufacturer

HAN901531.002.2.76

GTIN4051859459811

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-11350lm

Rated ambient temperature according to IEC62722-2-1-25 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width130 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth105 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power16 to 17 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current67 to 73 mA

Power factor0.97

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy85lm/W

LampsLED not replaceable

Light emissionDirect

Light colorMulticolored

Luminous flux1350lm

Light distributorReflector

Light distributionSymmetrical

Length130 mm

Max. system performance17 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles4

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
