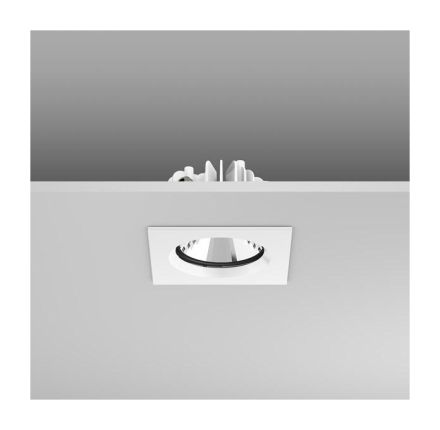

RZB 901532.002 16.7W 3000K 130x130x82 LED recessed ceiling spotlight

RZB 901532.002 16.7W 3000K 130x130x82 LED recessed ceiling spotlight

In stock

SKU: 528427

Price on request

€294.15

€0

Overview

LED downlight for the highest demands on technology and design. Protection class: IP 65 or IP 20. IP 65 version maintains the protection class even in the false ceiling, thus offering the best protection against the ingress of dirt or moisture (does not apply to converters, IP 20). With IP 65 LED cover made of toughened safety glass. IP 65 versions ball-proof in accordance with DIN 18032-03. IP 65 versions with Gore Protective Vents diaphragm valve to reduce condensation. IP 65 versions suitable for use in the food and beverage industry. Four-segment aluminum facet reflector with surface structure for IP 65 or high-gloss for IP 20. Unique light mixing chamber ensures harmonious illumination and very good glare control with a high luminaire operating efficiency. Ra 85 as standard, Ra 95 also possible as an option. LED service life 50,000 h (L80, B10). Color tolerance: 2x MacAdam (2 SDCM). Converter suitable for direct current, suitable for central emergency power supply. Also available in the square version with a round ceiling cutout. Simple spring fastening for tool-free installation. Mounting ring, luminaire housing and heat sink made of powder-coated die-cast aluminum. Rotationally symmetrical four-segment facet reflector made of aluminum with a high-gloss light mixing chamber. Open version. Ceiling fastening with spring system. Energy efficiency class A++

Property	Value
Max. System power:	18 W
Rated luminous flux according to IEC 62722-2-1:	2050 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	85 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	130 mm
Width:	130 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	18 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of bulbs:	1
Luminous flux:	2050 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for Cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	75 to 82 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 35 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	114 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.10

HAB16,7W 3000K 130x130x82

Manufacturer

HAN901532.002

GTIN4051859111566

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-12050lm

Rated ambient temperature according to IEC62722-2-1-25 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width130 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth85 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power18W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current75 to 82 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy114lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2050lm

Light distributorReflector

Light distributionSymmetrical

Length130 mm

Max. system performance18W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Housing materialAluminum
