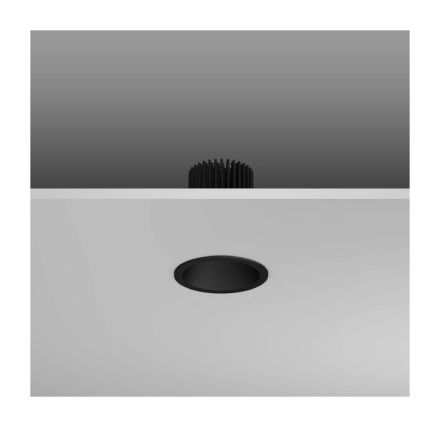

Decorative LED downlight in delicately small dimensions. Cover made of die-cast aluminum. Replacement for low-voltage downlights 35 W and 50 W. Protection class IP 44. LED service life 50,000 h (L70, B10). Color rendering index Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Converter connected to light via plug connector. Two different beam angles. Very good glare control thanks to recessed LED. Versions with darklight cover. Safety glass pane to protect the LED. Opal PMMA plastic pane included, can be optionally installed without tools (not with darklight versions). Versions in dimmable DALI and phase dimming. DALI converter suitable for direct current, suitable for central emergency power supply. Cover made of die-cast aluminum, powder-coated. Cold-formed aluminum heat sink. Reflector made of high-gloss anodized aluminum. With protective pane. Ceiling attachment with spring system. External LED converter via plug connection. With connecting cable between light and LED converter 250 mm. Passive cooling. Light source (LED) included in delivery. LED converter included in delivery. Cover plate made of opal plastic (PMMA) also included as an accessory. Energy efficiency class A+
| Property | Value |
| Max. System power: | 8 W |
| Rated luminous flux according to IEC 62722-2-1: | 510 lm |
| Housing color: | black |
| Housing material: | other |
| Protection class (IP): | IP44 |
| Outer diameter: | 91 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 125 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 2 mm |
| With motion detector: | no |
| Color temperature: | 4000 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 8 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high-gloss |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 510 lm |
| Cover material: | transparent glass |
| Covering of the luminaire with thermal insulation material possible: | no |
| Type of voltage: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 33 to 36 mA |
| Dimming depending on the operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| no | |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Total harmonic distortion (THD): | 0.25 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -10 to 30 °C |
| Wiring type: | Termination |
| Power factor: | 0.90 |
| Connection type: | other |
| Luminaire luminous efficacy: | 64 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Glow wire test in accordance with IEC 60695-2-11: | 850 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Colour consistency (McAdam ellipse): | SDCM4 |
