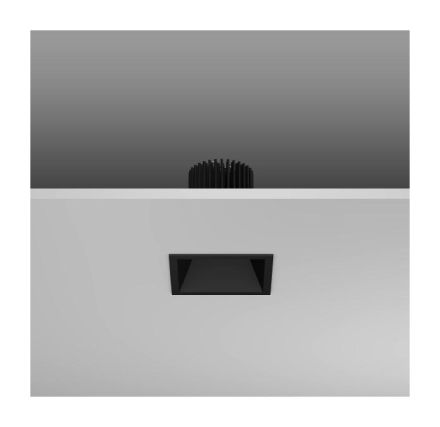

RZB 901602.003.1 Levido 11W 4000K 98x98x1 LED recessed ceiling spotlight

RZB 901602.003.1 Levido 11W 4000K 98x98x1 LED recessed ceiling spotlight

In stock

SKU: 533146

Price on request

€116.08

€0

Overview

Decorative LED downlight in delicately small dimensions. Cover made of die-cast aluminum. Replacement for low-voltage downlights 35 W and 50 W. Protection class IP 44. LED service life 50,000 h (L70, B10). Color rendering index Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Converter connected to light via plug connector. Two different beam angles. Very good glare control thanks to recessed LED. Versions with darklight cover. Safety glass pane to protect the LED. Opal PMMA plastic pane included, can be optionally installed without tools (not with darklight versions). Versions in dimmable DALI and phase dimming. DALI converter suitable for direct current, suitable for central emergency power supply. Cover made of die-cast aluminum, powder-coated. Cold-formed aluminum heat sink. Reflector made of high-gloss anodized aluminum. With protective pane. Ceiling mounting with spring system. External LED converter via plug connection. With connecting cable between light and LED converter 250 mm. Passive cooling. Light source (LED) included in delivery. LED converter included in delivery. Cover plate plastic (PMMA) opal also included as an accessory. Energy efficiency class A+

Property	Value
Max. System power:	13 W
Rated luminous flux according to IEC 62722-2-1:	840 lm
Housing color:	black
Housing material:	other
Protection class (IP):	IP44
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	125 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	98 mm
Width:	98 mm
Height/depth:	2 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	13 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Suitable for number of bulbs:	1
Installation width:	86 mm
Installation length:	86 mm
Luminous flux:	840 lm
Cover material:	Transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at Constant current:	54 to 59 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.25
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-10 to 30 °C
Wiring type:	Termination
Power factor:	0.90
Connection type:	other
Luminaire luminous efficacy:	65 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.25

HABLevido 11W 4000K 98x98x1

Manufacturer

HAN901602.003.1

GTIN4051859222293

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-1840lm

Rated ambient temperature according to IEC62722-2-1-10 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width98 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width86 mm

Installation height/depth125 mm

Installation length86 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power13 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth2 mm

LED nominal current at constant current54 to 59 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy65lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux840lm

Light distributorReflector

Light distributionSymmetrical

Length98 mm

Max. system performance13 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

ReflectorHigh gloss

Impact resistanceIK06

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialOther
