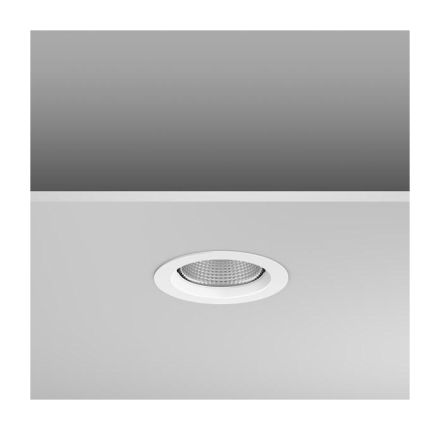

RZB 901619.002.76 Arelo 9W 2700K D130 H142 LED recessed ceiling spotlight

RZB 901619.002.76 Arelo 9W 2700K D130 H142 LED recessed ceiling spotlight

In stock

SKU: 533224

Price on request

€116.73

€0

Overview

Highly efficient LED recessed downlight with facet reflector in three sizes. Housing made of impact-resistant, UV-resistant polycarbonate. High-gloss anodized aluminum facet reflector for brilliant illumination. Satin-finished LED cover to reduce direct glare. Very homogeneous light image thanks to the combination of reflector and satin-finished LED cover. Protection class IP 44. LED service life 50,000 h (L70, B50). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Suitable for through-wiring. Simple spring fastening for tool-free installation. Cover ring made of die-cast aluminum, powder-coated. Housing made of plastic (polycarbonate, UV-resistant). Facet reflector made of high-gloss anodized aluminum. LED cover made of plastic (polycarbonate, UV-resistant), satin-finished, impact-resistant. With spring fastening. Passive cooling. Suitable for through-wiring. External operating device. Light source (LED) included. Energy efficiency class A+

Property	Value
Max. System power:	9 W
Rated luminous flux according to IEC 62722-2-1:	730 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	130 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	140 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	2700 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	9 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK05
Luminaire with limited Surface temperature 'D-mark':	no
Reflector:	high gloss
Suitable for number of bulbs:	1
Luminous flux:	730 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	no
Type of voltage:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	38 to 41 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.10
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	82 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	750 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.10

HABArelo 9W 2700K D130 H142

Manufacturer

HAN901619.002.76

GTIN4051859218128

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Outer diameter130 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1730lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth140 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature2700K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power9W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11750 °C - 30 s

Height/Depth2 mm

LED nominal current at constant current38 to 41 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy82lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux730lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance9W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles5

ReflectorHigh gloss

Impact resistanceIK05

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
