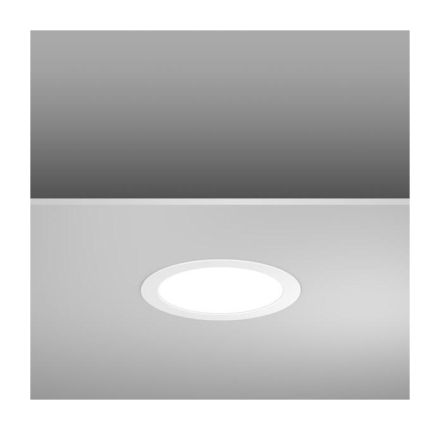

RZB 901666.002.730 Toledo Flat 19.3W 2700 6 LED recessed ceiling spotlight

RZB 901666.002.730 Toledo Flat 19.3W 2700 6 LED recessed ceiling spotlight

In stock

SKU: 533362

Price on request

€267.80

€0

Overview

Super-flat LED recessed downlight. Light guide and diffuser made of non-yellowing PMMA plastic. Very low installation depth. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Tunable White versions dynamically adjustable from 2700 K to 6500 K. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (not applicable for diameter D 495 mm). Separate converter box via plug connection. DALI converter suitable for direct voltage, suitable for central emergency power supply. Attachment housing as an accessory for all sizes. Retrofittable decorative cylinders made of chintz fabric as an accessory, optionally with satin polycarbonate cover plate. Areas of application: hallway, adjoining rooms, hotel, restaurant, meeting rooms, private areas. Energy efficiency class A+

Property	Value
Max. System power:	20 W
Rated luminous flux according to IEC 62722-2-1:	1700 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	255 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	55 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	2700 to 6500 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	18 to 20 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	1700 lm
Cover material:	Opal plastic
Covering the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	multi-colored
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	other
Brushed surface:	no
LED nominal current at constant current:	79 to 86 mA
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Type of wiring:	suitable for through wiring
Power factor:	0.96
Number of poles:	2
Conductor cross-section:	2.50 mm²
Connection type:	screw terminal
Luminous efficacy:	90 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.10

HABToledo 19,3W 2700 6

Manufacturer

HAN901666.002.730

GTIN4051859268727

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Outer diameter255 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11700lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth55 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power18 to 20 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current79 to 86 mA

Power factor0.96

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionDirect

Light colorMulticolored

Luminous flux1700lm

Light distributorWithout

Light distributionSymmetrical

Max. system performance20W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorWithout

Impact resistanceIK06

IP protection)IP54

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
