RZB 901696.002 HB 801 16W 1300lm white 105° LED recessed ceiling spotlight

RZB 901696.002 HB 801 16W 1300lm white 105° LED recessed ceiling spotlight

In stock

SKU: 704968

Price on request

€25.74

€0

Overview

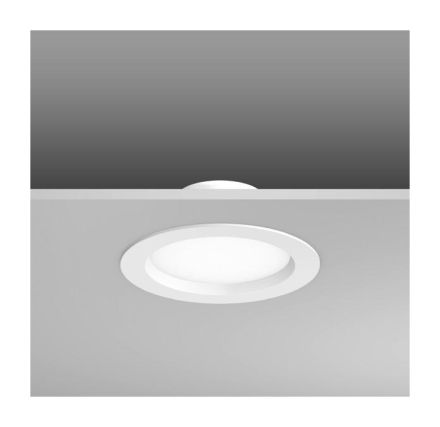

Round recessed downlight. Housing made of plastic-coated aluminum. Passive cooling. Diffuser made of opal plastic (polycarbonate), impact-resistant. Multi-color function: color temperature can be adjusted using the switching element on the back. Choice of 3000 K, 4000 K or 5700 K. Factory set to 4000 K. Tool-free installation using spring fastening. Control gear built in.

Property	Value
Max. System power:	16 W
Rated luminous flux according to IEC 62722-2-1:	1550 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	190 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	92 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	3000 to 5700 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	16 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	1550 lm
Cover material:	Opal plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	plastic coated
Brushed surface:	no
LED nominal current at constant current:	67 to 73 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.20
Rated service life L70/B50 at 25 °C:	40000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Screw terminal
Luminaire luminous efficacy:	97 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM6

Characteristics

Total harmonic distortion (THD)0.20

HABHB 801 16W 1300lm white 105°

Manufacturer

HAN901696.002

GTIN4051859462514

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Outer diameter190 mm

Rated lifetime L70/B50 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-11550lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth92 mm

Color consistency (McAdam ellipse)SDCM6

Color temperature3000 to 5700 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power16W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current67 to 73 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy97lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux1550lm

Light distributorWithout

Light distributionSymmetrical

Max. system performance16W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePlastic coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorWithout

Impact resistanceIK03

IP protection)IP54

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
