RZB 901699.002.76 Toledo 6 5W 700lm 830 840 white DALI LED recessed ceiling spotlight

RZB 901699.002.76 Toledo 6 5W 700lm 830 840 white DALI LED recessed ceiling spotlight

In stock

SKU: 721564

Price on request

€116.73

€0

Overview

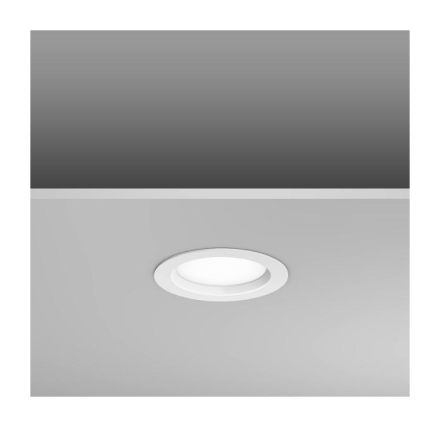

Round recessed downlight. Housing made of UV-resistant polycarbonate. Cover ring made of die-cast aluminum, powder-coated. Diffuser made of UV-resistant plastic (polycarbonate), opal, impact-resistant. MultiColour - color temperature adjustable with switching element. Choice of 3000 K or 4000 K. Factory set to 4000 K. Tool-free installation thanks to spring fastening. Operating device in separate device box with connecting cable. Through-wiring box (5-pin) available as an accessory.

Property	Value
Max. System power:	6.50 W
Rated luminous flux according to IEC 62722-2-1:	750 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	130 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	100 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	3000 to 4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	6.50 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK05
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	750 lm
Cover material:	Opal plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC/DC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	27 to 30 mA
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming ometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.10
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	116 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	750 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.10

HABToledo 6 5W 700lm 830 840 white DALI

Manufacturer

HAN901699.002.76

GTIN4051859499138

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Outer diameter130 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1750lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth100 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power6.50W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11750 °C - 30 s

Height/Depth2 mm

LED nominal current at constant current27 to 30 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy116lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux750lm

Light distributorWithout

Light distributionSymmetrical

Max. system performance6.50W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorWithout

Impact resistanceIK05

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
