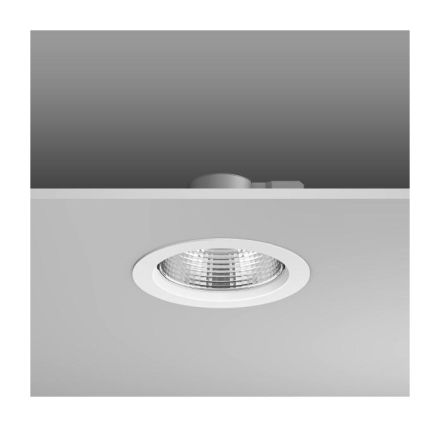

RZB 901703.002 Arelo 16W 1650lm 830 840 white LED recessed ceiling spotlight

RZB 901703.002 Arelo 16W 1650lm 830 840 white LED recessed ceiling spotlight

In stock

SKU: 721502

Price on request

€86.34

€0

Overview

Round recessed downlight. Housing: plastic (polycarbonate, UV-resistant). Cover ring: die-cast aluminum, powder-coated. Aluminum facet reflector, high-gloss anodized for brilliant illumination. Satin-finished LED cover to reduce direct glare. MultiColour function: color temperature can be adjusted using the switching element on the back. Choice of 3000 K or 4000 K. Factory set to 4000K. Tool-free installation thanks to spring fastening. Control gear integrated in the luminaire housing. Suitable for through-wiring.

Property	Value
Max. System power:	16 W
Rated luminous flux according to IEC 62722-2-1:	1800 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	172 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	140 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	3000 to 4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	16 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK05
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high gloss
Suitable for number of bulbs:	1
Luminous flux:	1800 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	67 to 73 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-30 to 40 °C
Type of wiring:	suitable for through wiring
Power factor:	0.96
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	113 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	750 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

HABArelo 16W 1650lm 830 840 white

Manufacturer

HAN901703.002

GTIN4051859499183

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Outer diameter172 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11800lm

Rated ambient temperature according to IEC62722-2-1-30 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth140 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power16W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11750 °C - 30 s

Height/Depth2 mm

LED nominal current at constant current67 to 73 mA

Power factor0.96

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy113lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux1800lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance16W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles3

ReflectorHigh gloss

Impact resistanceIK05

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum

RZB 901703.002 Arelo 16W 1650lm 830 840 white LED recessed ceiling spotlight

Price on request

€86.34

€0
