RZB 901708.002 Quardo 37W 3900lm 830 white LED recessed ceiling spotlight

RZB 901708.002 Quardo 37W 3900lm 830 white LED recessed ceiling spotlight

In stock

SKU: 721498

Price on request

€178.17

€0

Overview

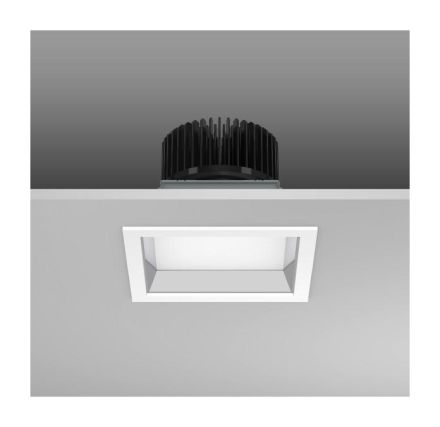

High-quality recessed downlight with a square illuminated surface. Installation frame made of powder-coated die-cast aluminum. Retaining bracket made of galvanized sheet steel. Reflector made of high-gloss anodized aluminum. Recessed cover made of satin-finished polycarbonate. Ceiling fastening with spring system. Including external operating device via plug connection, connecting cable 600 mm. Through-wiring box (5-pin) available as an accessory.

Property	Value
Max. System power:	37 W
Rated luminous flux according to IEC 62722-2-1:	3900 lm
Housing color:	white
Housing material:	other
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	150 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	176 mm
Width:	176 mm
Height/depth:	4 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	37 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Suitable for number of bulbs:	1
Installation width:	165 mm
Installation length:	165 mm
Luminous flux:	3900 lm
Covering the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	154 to 168 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.20
Degree of protection (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	106 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.20

HABQuardo 37W 3900lm 830 white

Manufacturer

HAN901708.002

GTIN4051859503873

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Rated luminous flux according to IEC 62722-2-13900lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width176 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width165 mm

Installation height/depth150 mm

Installation length165 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power37W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth4 mm

LED nominal current at constant current154 to 168 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy106lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3900lm

Light distributorReflector

Light distributionSymmetrical

Length176 mm

Max. system performance37W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorHigh gloss

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialOther
