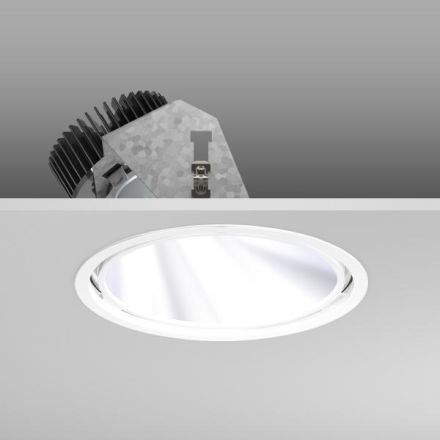

RZB 901712.002 Pascala EVO Round 11-39W 1400-4400lm LED recessed ceiling spotlight

RZB 901712.002 Pascala EVO Round 11-39W 1400-4400lm LED recessed ceiling spotlight

In stock

SKU: 804072

Price on request

€270.12

€0

Overview

High-quality recessed downlight. Galvanized sheet steel retaining bracket. Die-cast aluminum inner ring and end ring. Brilliantly shining corona on the light exit surface thanks to the specially designed die-cast aluminum ring as a reflector end. Reflector made of MIRO-SILVER® with 98% total light reflection. Patented round design shaped like a truncated cone. MultiLumen: 16 different luminous fluxes can be set on site in approx. 200 lm increments using DIP switches on the separate operating device. Tool-free installation thanks to spring fastening. Through-wiring box (5-pin) available as an accessory. Possible accessories - order separately: Extensive selection of accessory panels - can be retrofitted without tools. With the appropriate cover panels, Pascala achieves protection class IP 54.

Dimming potentiometer (integrated into the device):

Property	Value
Max. System power:	39 W
Rated luminous flux according to IEC 62722-2-1:	1400 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	241 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	160 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	11 to 39 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	asymmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1400 lm
Covering of the lamp with thermal insulation material possible:	no
Type of voltage:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	galvanized
Brushed surface:	no
LED nominal current at constant current:	46 to 50 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 35 °C
Wiring type:	Termination
Power factor:	0.95
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	128 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.10

HABPascala EVO Round 11-39W 1400-4400lm

Manufacturer

HAN901712.002

GTIN4051859672777

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Outer diameter241 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11400lm

Rated ambient temperature according to IEC62722-2-1-25 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth160 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power11 to 39 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth2 mm

LED nominal current at constant current46 to 50 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy128lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1400lm

Light distributorReflector

Light distributionAsymmetrical

Max. system performance39 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceGalvanized

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
