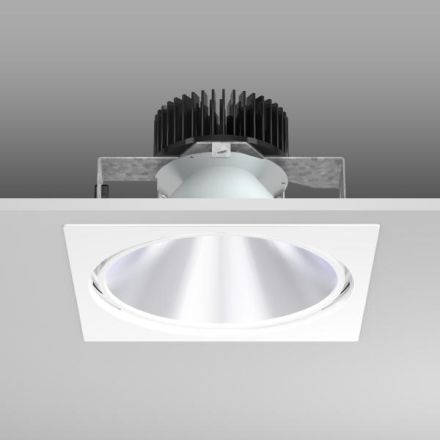

RZB 901713.002.1 Pascala EVO Square 11-39W 1550-4600lm LED recessed ceiling spotlight

RZB 901713.002.1 Pascala EVO Square 11-39W 1550-4600lm LED recessed ceiling spotlight

In stock

SKU: 804122

Price on request

€249.71

€0

Overview

High-quality recessed downlight. Galvanized sheet steel retaining bracket. Die-cast aluminum inner ring and square end plate. Brilliantly shining corona on the light exit surface thanks to the specially designed die-cast aluminum ring as a reflector end. Reflector made of MIRO-SILVER® with 98% total light reflection. Patented round design shaped as a truncated cone. MultiLumen: 16 different luminous fluxes can be set on site in approx. 200 lm increments using DIP switches on the separate operating device. Tool-free installation thanks to spring fastening. Through-wiring box (5-pin) available as an accessory.

Property	Value
Max. System power:	39 W
Rated luminous flux according to IEC 62722-2-1:	1550 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	160 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	242 mm
Width:	242 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	11 to 39 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1550 lm
Cover of the Luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	galvanized
Brushed surface:	no
LED nominal current at constant current:	46 to 50 mA
Dimming depends on Operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 35 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	141 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.10

HABPascala EVO Square 11-39W 1550-4600lm

Manufacturer

HAN901713.002.1

GTIN4051859672715

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11550lm

Rated ambient temperature according to IEC62722-2-1-25 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width242 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth160 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power11 to 39 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current46 to 50 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy141lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1550lm

Light distributorReflector

Light distributionSymmetrical

Length242 mm

Max. system performance39 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceGalvanized

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
