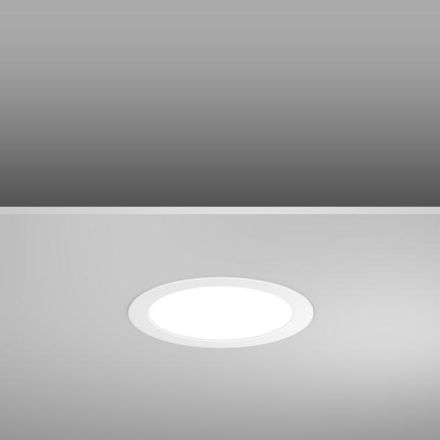

RZB 901715.002.19 Toledo Flat 17W 3000K D255 m.HF-BWM LED recessed ceiling spotlight

RZB 901715.002.19 Toledo Flat 17W 3000K D255 m.HF-BWM LED recessed ceiling spotlight

In stock

SKU: 804860

Price on request

€226.75

€0

Overview

Super-flat LED recessed downlight. Die-cast aluminum housing. Light guide and diffuser made of non-yellowing PMMA, opal matt. Suitable for direct covering with thermal insulation material. Ceiling mounting with spring system. Installation depth depends on ceiling thickness. Including external operating device via plug connection, connecting cable 250 mm. Connected HF motion detector in separate device box. Adjustable dimming functions soft start, corridor, permanent. Wireless networking, configuration and communication of the sensors via Bluetooth®. Operation via Android / iOS device, free app available for download. Master / slave switching with up to three additional Toledo Flat DALI 17 W possible. Brightness sensor without function. Not suitable for metal ceilings. Versions with motion detector not suitable for surface-mounted housings. Suitable for through-wiring with separately available accessories. Retrofittable decorative cylinders made of chintz fabric as accessories, optionally with satin plastic cover plate. Through-wiring box (5-pin) available as an accessory.

Property	Value
Max. System power:	17 W
Rated luminous flux according to IEC 62722-2-1:	1650 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	255 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	55 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	yes
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	17 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	1650 lm
Cover material:	Opal plastic
Cover of the lamp with Thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	other
Brushed surface:	no
LED nominal current at constant current:	71 to 77 mA
Dimming depends on Operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	98 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.20

HABToledo Flat 17W 3000K D255 with HF-BWM

Manufacturer

HAN901715.002.19

GTIN4051859685791

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Outer diameter255 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11650lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth55 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power17 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth3 mm

LED nominal current at constant current71 to 77 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy98lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1650lm

Light distributorWithout

Light distributionSymmetrical

Max. system performance17 W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP54

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
