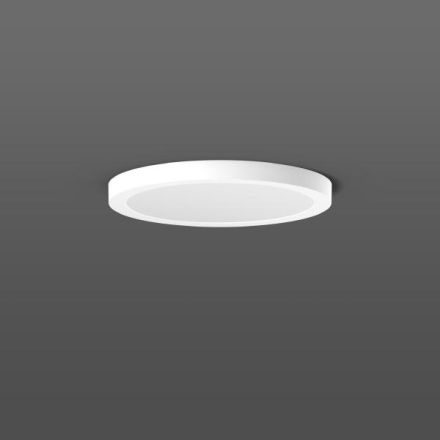

RZB 901718.002 TRIXY 14-22W 1600-2600lm 830-840 ws LED recessed ceiling spotlight

RZB 901718.002 TRIXY 14-22W 1600-2600lm 830-840 ws LED recessed ceiling spotlight

In stock

SKU: 836664

Price on request

€44.67

€0

Overview

Super-flat round downlight suitable for recessed and surface mounting. Housing made of UV-resistant polycarbonate. Perfect thermal management using an aluminum heat sink. Clear plastic diffuser (PMMA) with opal reflector film. Lateral light coupling (RZB SIDELITE® technology) for above-average homogeneous luminance distribution. MultiColour: color temperature 3000 K or 4000 K can be individually adjusted using the rear switching element. Factory-set to 4000 K. MultiLumen: luminous flux can be adjusted in 3 levels. Factory-set to the highest luminous flux. MultiCutOut: various ceiling cutouts can be individually adjusted using the adjustable spring fastening. Suitable for ceiling cutouts from ø >120 to 260 mm. Suitable for recessed ceiling mounting and for surface mounting on the ceiling and wall. Suitable for through-wiring. Operating device integrated.

Property	Value
Max. System power:	22 W
Rated luminous flux according to IEC 62722-2-1:	1750 lm
Housing color:	white
Protection class (IP):	IP20
Outer diameter:	300 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	82 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	25 mm
With motion detector:	no
Color temperature:	3000 to 4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	14 to 22 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1750 lm
Cover material:	opal plastic
Covering of the luminaire with thermal insulation material possible:	yes
Voltage type:	AC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	other
Brushed surface:	no
LED nominal current at constant current:	58 to 64 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	40000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Type of wiring:	suitable for through-wiring
Power factor:	0.90
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	125 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM4

Characteristics

HABTRIXY 14-22W 1600-2600lm 830-840 ws

Manufacturer

HAN901718.002

GTIN4051859713128

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Outer diameter300 mm

Rated lifetime L70/B50 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-11750lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth82 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power14 to 22 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth25 mm

LED nominal current at constant current58 to 64 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy125lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux1750lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance22W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal
