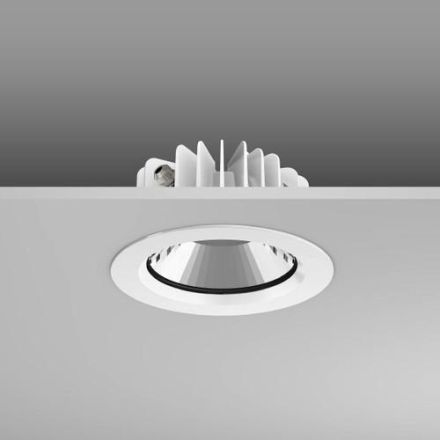

RZB 901795.002.76 Ledona LED/12-39W-3000K D180 LED recessed ceiling spotlight

RZB 901795.002.76 Ledona LED/12-39W-3000K D180 LED recessed ceiling spotlight

In stock

SKU: 941378

Price on request

€258.91

€0

Into a basketIn the basketGo

Overview

Ledona LED/12-39W-3000K D180 LED recessed ceiling spotlight

Feature	Value
System power:	39 W
Rated luminous flux:	1550 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	180 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	89 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	12 to 39 W
Operating device:	LED operating device, current-controlled
Beam angle:	wide beam 41-80°
Impact resistance:	IK03
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Luminous flux:	1550 lm
Cover the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
DALI dimming:	yes
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	-25 to 35 °C
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	130 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	90 %
Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	50 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	continuously
Beam angle adjustable:	no
Installation diameter:	160 mm
Max. number of lights circuit breaker B16:	30
Max. Number of lights circuit breaker C16:	36
Integrated emergency power supply:	no
IFTTT support available:	no
Glare limitation (UGR):	18.20
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)0.10

Rated luminous flux1550 lm

HABLED/12-39W-3000K D180

Manufacturer

HAN901795.002.76

GTIN4051859917885

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter180 mm

Rated ambient temperature according to IEC 62722-2-1-25 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)18.20

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter160 mm

Installation height/depth89 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI90-100

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power12 to 39 W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth3 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy130lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1550lm

Luminous flux adjustableContinuously variable

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90 %

Light distributorReflector

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B1630

Max. number of luminaires Circuit breaker C1636

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles4

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

System performance39 W

AdjustabilityNot adjustable

Housing materialAluminum
