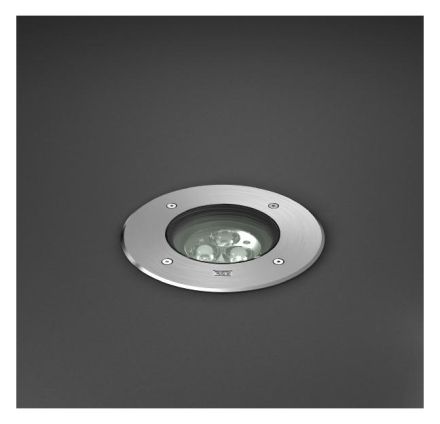

RZB 641339.000.2 Terra ES 130 4W-2700K LED recessed floor spotlight

RZB 641339.000.2 Terra ES 130 4W-2700K LED recessed floor spotlight

In stock

SKU: 897310

Price on request

€385.25

€0

Overview

Compact LED recessed floor light for accent lighting. Housing made of epoxy resin duroplast, stainless steel, aluminum. Circular cover panel V4A ground. Housing interior sealed to IP 68 even during installation. Integrated Vapour-Seal condensate protection. With connecting cable H07RN8-F, L 500 mm. The use of a built-in housing is required, please order separately.

Property	Value
Nominal voltage:	220 to 240 V
Socket:	without
With light source:	yes
With operating device:	yes
Installation diameter:	125 mm
Housing color:	stainless steel
Operating device:	LED operating device, current-controlled
Outer diameter:	130 mm
Light source:	LED not replaceable
Suitable for number of light sources:	1
Protection type (IP):	IP68
Protection class:	II
Electrical connection with plug-in system:	no
Cover material:	Transparent glass
Adjustable:	no
Light distribution:	symmetrical
Drive-over:	no
Rated luminous flux according to IEC 62722-2-1:	300 lm
Color temperature:	2700 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	2000 kg
Voltage type:	AC/DC
LED nominal current at constant current:	17 to 18 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Beam angle:	extremely wide beam >80°
Suitable for lamp power:	4 W
Max. system power:	4 W
Power factor:	0.60
Height/depth:	2 mm
Installation height/depth:	390 mm
Type of wiring:	suitable for through-wiring
Connection type:	other

Characteristics

HABTerra ES 130 4W-2700K

Manufacturer

HAN641339.000.2

GTIN4051859704041

Connection typeOther

Type of wiringSuitable for through wiring

Outer diameter130 mm

Rated luminous flux according to IEC 62722-2-1300lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter125 mm

Installation height/depth390 mm

Electrical connection with plug-in systemNo

Color temperature2700K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power4W

Suitable for number of lamps1

Housing colorStainless steel

Height/Depth2 mm

AdjustableNo

LED nominal current at constant current17 to 18 mA

Power factor0.60

LampsLED not replaceable

Light colorWhite

Light distributionSymmetrical

Max. load2000 kg

Max. system performance4W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP68

Protection classII

Voltage typeAC/DC

Cover materialGlass transparent

RolloverNo
