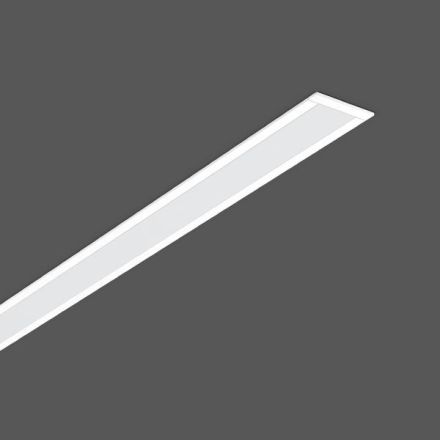

RZB 312176.002.1 Less is more 27 21.8W 4000 LED recessed light

RZB 312176.002.1 Less is more 27 21.8W 4000 LED recessed light

In stock

SKU: 531851

Price on request

€254.81

€0

Overview

LED light in a minimalist design. LED service life 60,000 h (L80, B10). Color tolerance: 3-fold MacAdam (3 SDCM). Diffuser made of non-yellowing plastic (PMMA), opal, microprismatic or glossy aluminum micro-grid. Version with micro-grid ideal for office workstations (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. As aesthetically sophisticated general lighting (corridors, offices, conference rooms, shops) or accent lighting. Housing made of powder-coated extruded aluminum profile. End caps made of powder-coated die-cast aluminum. Diffuser made of non-yellowing plastic (PMMA), opal. External control gear. With connecting cable between light and control gear. Light source (LED) included in delivery. Suitable for installation in false ceilings or lightweight hollow walls. Energy efficiency class A++

Property	Value
Max. System power:	25 W
Rated luminous flux according to IEC 62722-2-1:	1950 lm
Suitable for number of lamps:	1
Length:	1014 mm
Width:	38 mm
Height/depth:	2 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK00
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	60000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	screw terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	without
Installation height/depth:	45 mm
Without dimming function:	yes
Installation width:	30 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations according to EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	1006 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	25 W
Luminaire luminous efficacy:	78 lm/W
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HABLess is more 27 21,8W 4000

Manufacturer

HAN312176.002.1

GTIN4051859230519

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-11950lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width38 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width30 mm

Installation height/depth45 mm

Installation length1006 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power25W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth2 mm

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy78lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1014 mm

Max. system performance25W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK00

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
