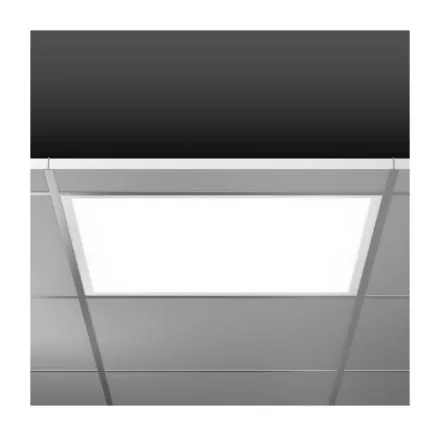

Highly economical insert surface light with progressive LED technology. Frame made of powder-coated aluminum. Diffuser made of opal plastic. Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling (RZB SIDELITE® technology) for above-average homogeneous luminance distribution. External control gear. Extremely simple installation of the control gear using a twist-and-plug system and extended connection cable to the light (1.90 m). MultiLumen: The light's luminous flux can be adjusted in 4 levels. Factory-set to the lowest level available. The light can be used as a recessed, surface-mounted or pendant light using accessories (to be ordered separately). Approved for use in the food and beverage industry.
| Property | Value |
| Max. System power: | 38 W |
| Rated luminous flux according to IEC 62722-2-1: | 3400 lm |
| Suitable for number of lamps: | 1 |
| Length: | 595 mm |
| Width: | 595 mm |
| Protection rating (IP): | IP40 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | free beam/diffuse |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 30 °C |
| Socket: | other |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Cover material: | Opal plastic |
| Light distributor: | without |
| Installation height/depth: | 160 mm |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With Air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 29 to 38 W |
| Luminaire luminous efficacy: | 118 lm/W |
| Power factor: | 0.98 |
| Wiring type: | Termination |
| Number of poles: | 2 |
| Conductor cross-section: | 1.50 mm² |
