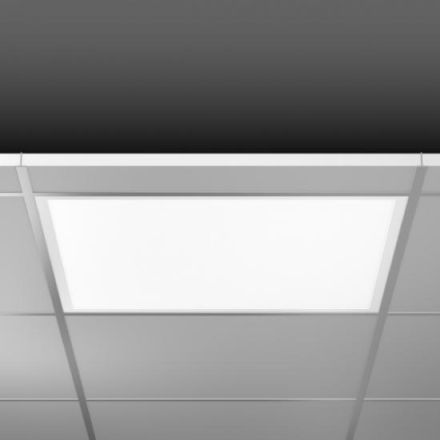

RZB 312273.002.2.730 Sidelite ECO 32W 2700-6500K 595x595x62 LED recessed luminaire

RZB 312273.002.2.730 Sidelite ECO 32W 2700-6500K 595x595x62 LED recessed luminaire

In stock

SKU: 532159

Price on request

€333.90

€0

Overview

Highly economical luminaire series with progressive LED technology, consisting of ceiling, wall, insert, recessed and pendant luminaires for indoor use. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Suitable for use in the food and beverage industry. Light guide and diffuser made of non-yellowing PMMA with fine microprismatics. RZB SIDELITE technology: lateral light coupling for above-average homogeneous luminance distribution. LED service life 50,000 h (L70, B10). Flicker < 5%. Extremely simple converter installation thanks to twist-and-plug system and extended converter connection cable to the luminaire. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Frame made of white powder-coated aluminum. Diffuser made of plastic (PMMA), microprismatic. Screen-compatible in accordance with EN 12464-1. Diffuser and light guide made of non-yellowing plastic (PMMA). Side light coupling with LED. Operating device and smart+free Bluetooth control module (height 55 mm) for wireless networking and operation via external Android / IOS device, free app available for download. Tunable White gives you the option of dynamically adjusting the color temperature of white light. Light source (LED) included in delivery. Luminaire can be used as a recessed luminaire using accessories (to be ordered separately). Energy efficiency class A+

Property	Value
Max. System power:	32 W
Rated luminous flux according to IEC 62722-2-1:	3050 lm
Suitable for number of lamps:	1
Length:	595 mm
Width:	595 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	2700 to 6500 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Socket:	other
Connection type:	screw terminal
With operating device:	yes
Cover material:	structured plastic
Light distributor:	other
Installation height/depth:	160 mm
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	multi-colored
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	yes
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	30 to 32 W
Luminaire luminous efficacy:	102 lm/W
Power factor:	0.96
Type of wiring:	suitable for through wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²

Characteristics

HABSidelite ECO 32W 2700-6500K 595x595x62

Manufacturer

HAN312273.002.2.730

GTIN4051859269694

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13050lm

Rated ambient temperature according to IEC62722-2-15 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width595 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth160 mm

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power30 to 32 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Power factor0.96

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy102lm/W

LampsLED not replaceable

Light emissionDirect

Light colorMulticolored

Light distributorOther

Light distributionSymmetrical

Length595 mm

Max. system performance32W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
