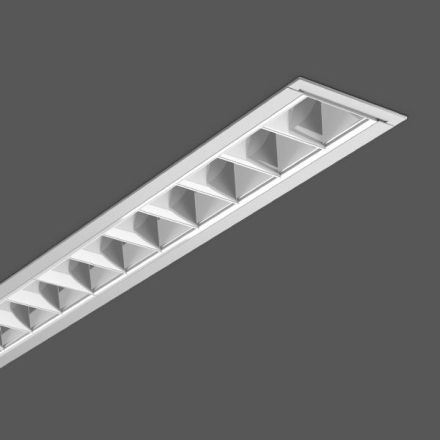

RZB 312348.0045.76 Less is more 50 28W 3000K LED recessed light

RZB 312348.0045.76 Less is more 50 28W 3000K LED recessed light

In stock

SKU: 534050

Price on request

€371.38

€0

Overview

Improved efficiency, up to 130 lm/W. Integrated control gear. Optimized design. Replaceable and removable LED unit. LED service life 50,000 h (L80, B10). Diffuser made of non-yellowing plastic (PMMA), opal or Alea Optik System. Low-beam design. Alea Optik System is ideal for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Color tolerance: triple MacAdam (3 SDCM). Housing: powder-coated extruded aluminum profile. End caps: powder-coated aluminum. Alea Optik System: reflector structure (ABS, aluminum vapor-deposited, high-gloss) with diffuser made of non-yellowing plastic (PMMA), opal for glare-free light in the workplace (UGR < 19, suitable for computer workstations in accordance with DIN EN 12464-1). Replaceable and removable LED unit with integrated operating device. Energy efficiency class A+

Property	Value
Max. System power:	28 W
Rated luminous flux according to IEC 62722-2-1:	3350 lm
Suitable for number of lamps:	4
Length:	1141 mm
Width:	71 mm
Height/depth:	1.50 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Aluminium
Housing material:	Aluminium
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-25 to 30 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	other
Light distributor:	reflector
Installation height/depth:	100 mm
Without dimming function:	no
Installation width:	60 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed installation:	yes
Light color:	white
Suitable for computer workstations according to EN 12464-1:	yes
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	1128 mm
Design of the grid:	without
Cover of the luminaire with Thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	28 W
Luminaire luminous efficacy:	120 lm/W
Power factor:	0.90
Type of wiring:	Termination
Number of poles:	5
Conductor cross-section:	1.50 mm²

Characteristics

HABLess is more 50 28W 3000K

Manufacturer

HAN312348.0045.76

GTIN4051859287223

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13350lm

Rated ambient temperature according to IEC62722-2-1-25 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width71 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width60 mm

Installation height/depth100 mm

Installation length1128 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power28W

Suitable for number of lamps4

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAluminum

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth1.50 mm

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Length1141 mm

Max. system performance28W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialOther

Housing materialAluminum
