RZB 312368.002.790 Sidelite ECO 29/38W 3200/4000lm 830 white LED recessed light

RZB 312368.002.790 Sidelite ECO 29/38W 3200/4000lm 830 white LED recessed light

In stock

SKU: 721870

Price on request

€239.22

€0

Overview

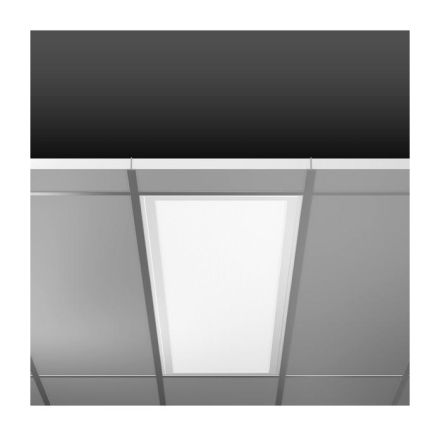

Highly economical insert panel light with progressive LED technology. Powder-coated aluminum frame. Microprismatic plastic diffuser. Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light injection with LED. External operating device. Screen-compatible in accordance with DIN EN 12464-1.

Property	Value
Max. System power:	38 W
Rated luminous flux according to IEC 62722-2-1:	3200 lm
Suitable for number of lamps:	1
Length:	1245 mm
Width:	308 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	structured plastic
Light distributor:	other
Installation height/depth:	160 mm
Without dimming function:	yes
Installation width:	296 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	1233 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	29 to 38 W
Luminaire luminous efficacy:	111 lm/W
Power factor:	0.98
Type of wiring:	Termination
Number of poles:	2
Conductor cross-section:	1.50 mm²

Characteristics

HABSidelite ECO 29/38W 3200/4000lm 830 white

Manufacturer

HAN312368.002.790

GTIN4051859499121

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13200lm

Rated ambient temperature according to IEC62722-2-15 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width308 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width296 mm

Installation height/depth160 mm

Installation length1233 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power29 to 38 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Power factor0.98

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy111lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1245 mm

Max. system performance38W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
