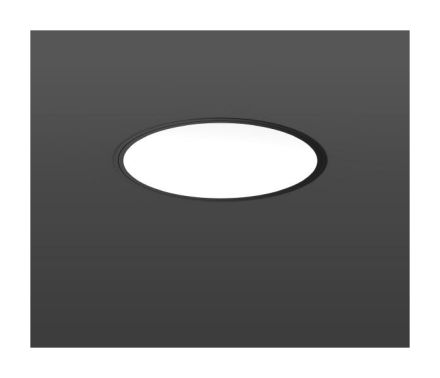

RZB 312387.0031.2.12 Triona 49W 2700-6500K DALI LED recessed luminaire

RZB 312387.0031.2.12 Triona 49W 2700-6500K DALI LED recessed luminaire

In stock

SKU: 805101

Price on request

€1,476.60

€0

Overview

Decorative round LED recessed surface light. Cover made of powder-coated sheet steel. Frame made of powder-coated aluminum. Mounting ring made of powder-coated extruded aluminum profile. Light output via opal plastic diffuser. Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light injection (RZB SIDELITE® technology) for above-average homogeneous luminance distribution and borderless illumination. Tunable White versions dynamically adjustable from 2700 K to 6500 K. Suitable for installation in hollow ceilings. Tool-free mounting system using a tilting lever mechanism (patent pending). Control gear integrated. Extremely simple installation thanks to the plug & play system. Ideal for use in Human Centric Lighting (HCL) in conjunction with RZB lighting management systems.

Property	Value
Max. System power:	51 W
Rated luminous flux according to IEC 62722-2-1:	4800 lm
Suitable for number of lamps:	1
Height/depth:	2 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	steel
Color temperature:	2700 to 6500 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Outer diameter:	889 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	Plug-in terminal
With control gear:	yes
Cover material:	Opal plastic
Light distributor:	without
Installation height/depth:	100 mm
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	multi-colored
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation diameter:	866 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
DALI dimming:	yes
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	49 to 51 W
Luminaire luminous efficacy:	98 lm/W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.50 mm²

Characteristics

HABTriona 49W 2700-6500K DALI

Manufacturer

HAN312387.0031.2.12

GTIN4051859530909

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter889 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14800lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter866 mm

Installation height/depth100 mm

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power49 to 51 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth2 mm

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy98lm/W

LampsLED not replaceable

Light emissionDirect

Light colorMulticolored

Light distributorWithout

Light distributionSymmetrical

Max. system performance51 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
