RZB 312472.002.1.76 Less is more BeamLine 35W 3150lm 940 ws LED recessed luminaire

RZB 312472.002.1.76 Less is more BeamLine 35W 3150lm 940 ws LED recessed luminaire

In stock

SKU: 804291

Price on request

€487.17

€0

Overview

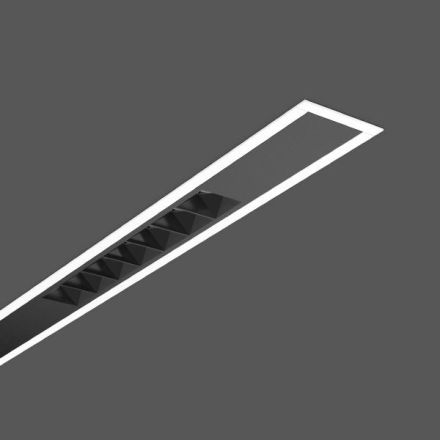

Linear ceiling and wall recessed luminaire for aesthetically sophisticated lighting. Luminaire with 3 LED light units. Housing: powder-coated extruded aluminum profile. End caps: powder-coated aluminum. LED light unit with MRS technology: mini reflector system made of metallized thermoplastic with prism-shaped black anti-glare frame for pleasant glare-free light (UGR < 10). 7 reflector elements per LED light unit. Medium-wide light distribution. Ceiling mounting with pre-assembled SBS clamp system. Replaceable and removable LED unit with integrated operating device. Suitable for through-wiring.

Property	Value
Max. System power:	35 W
Rated luminous flux according to IEC 62722-2-1:	3150 lm
Suitable for number of lamps:	3
Length:	1702 mm
Width:	71 mm
Height/depth:	1.50 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	other
Light distributor:	reflector
Installation height/depth:	125 mm
Without dimming function:	no
Installation width:	60 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	1688 mm
Design of the grid:	without
Cover of the luminaire with Thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	35 W
Luminaire luminous efficacy:	90 lm/W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.50 mm²

Characteristics

HABLess is more BeamLine 35W 3150lm 940 ws

Manufacturer

HAN312472.002.1.76

GTIN4051859521112

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13150lm

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width71 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width60 mm

Installation height/depth125 mm

Installation length1688 mm

Color temperature4000K

Color rendering index CRI90-100

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power35W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth1.50 mm

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Length1702 mm

Max. system performance35W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialOther

Housing materialAluminum
