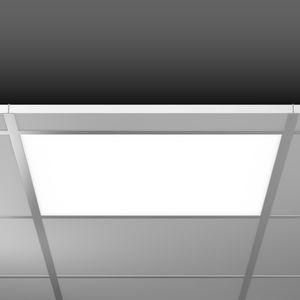

RZB 312573.002.790 Parledo 31-40W 4000K 622x622 LED recessed light

RZB 312573.002.790 Parledo 31-40W 4000K 622x622 LED recessed light

In stock

SKU: 836120

Price on request

€283.77

€0

Overview

Highly efficient LED ceiling insert light for high hygienic requirements. Particularly suitable for use in the healthcare and industrial sectors. Housing made of powder-coated sheet steel. Frameless appearance in the module ceiling thanks to the extra narrow luminaire frame. Luminaire frame made of powder-coated aluminum. Diffuser with a smooth surface on the room side for low sensitivity to dirt and easy cleaning. Diffuser made of durable polycarbonate (PC), opal. LED backlight technology for homogeneous illumination of the entire light-emitting surface. External control gear. Easy installation thanks to an extended 2 m connection cable. Suitable for through-wiring as standard. MultiLumen: The luminaire luminous flux can be adjusted in 4 levels. Factory-set to the lowest luminaire luminous flux. Protection class IP 65 for luminaire and control gear on the room and ceiling side. Approved for use in the food and beverage industry.

Property	Value
Max. System power:	40 W
Rated luminous flux according to IEC 62722-2-1:	4500 lm
Suitable for number of lamps:	1
Length:	622 mm
Width:	622 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	60000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	without
Installation height/depth:	160 mm
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	31 to 40 W
Luminaire luminous efficacy:	146 lm/W
Power factor:	0.98
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HABLED 31-40W 4000K 622x622

Manufacturer

HAN312573.002.790

GTIN4051859681342

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-14500lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width622 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth160 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power31 to 40 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Power factor0.98

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy146lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length622 mm

Max. system performance40W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
