RZB 641333.000 Terra ES 190 12W 850lm 830 LED recessed floor light

RZB 641333.000 Terra ES 190 12W 850lm 830 LED recessed floor light

In stock

SKU: 836294

Price on request

€422.45

€0

Overview

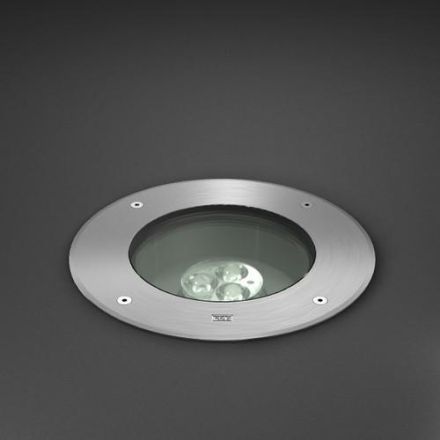

In-ground light for pedestrian areas. Housing made of epoxy resin duroplast, stainless steel, aluminum. Circular V4A cover plate, ground. Housing interior sealed to IP 68 even during installation. Integrated Vapour-Seal condensate protection. Flush ESG glazing with secondary sealing glass. High-performance LED refractor optics. Beam direction can be adjusted up to 15° from the vertical when installed and the light is sealed. With connecting cable H07RN8-F, L 500 mm. The use of a built-in housing is required, please order separately.

Property	Value
Nominal voltage:	220 to 240 V
Socket:	without
With light source:	yes
With operating device:	yes
Installation diameter:	175 mm
Housing color:	stainless steel
Operating device:	LED operating device, current-controlled
Outer diameter:	190 mm
Light source:	LED not replaceable
Suitable for number of light sources:	1
Protection type (IP):	IP68
Protection class:	II
Electrical connection with plug-in system:	no
Cover material:	Transparent glass
Adjustable:	no
Light distribution:	symmetrical
Drive-over:	no
Rated luminous flux according to IEC 62722-2-1:	850 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	2000 kg
Voltage type:	AC/DC
LED nominal current at constant current:	50 to 55 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Beam angle:	narrow beam 11-20°
Suitable for lamp power:	12 W
Max. System power:	12 W
Power factor:	0.85
Height/depth:	1.50 mm
Installation height/depth:	200 mm
Type of wiring:	suitable for through-wiring
Number of poles:	2
Connection type:	other

Characteristics

HABTerra ES 190 12W 850lm 830

Manufacturer

HAN641333.000

GTIN4051859678465

Connection typeOther

Type of wiringSuitable for through wiring

Beam angleNarrow beam 11-20°

Outer diameter190 mm

Rated luminous flux according to IEC 62722-2-1850lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter175 mm

Installation height/depth200 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power12W

Suitable for number of lamps1

Housing colorStainless steel

Height/Depth1.50 mm

AdjustableNo

LED nominal current at constant current50 to 55 mA

Power factor0.85

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. load2000 kg

Max. system performance12W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

IP protection)IP68

Protection classII

Voltage typeAC/DC

Cover materialGlass transparent

RolloverNo
