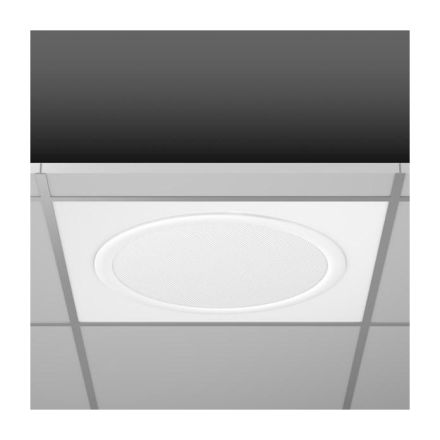

RZB 901591.002 Toledo 35W 3000K 595x595x49 LED recessed light

In stock
SKU: 530171
€189.93
Into a basketIn the basketGo

Overview

Extension of the very successful LED downlight series as an insert light for grid ceilings. Super-flat design. Diffuser made of non-yellowing plastic (PMMA), opal matt or microprismatic. LED service life 50,000 hours (L70, B10). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Separate converter box via plug connection. DALI converter suitable for direct current, suitable for central emergency power supply. Retrofittable decorative cylinders made of chintz fabric as accessories, optionally with satin polycarbonate cover panel. Areas of application: office, meeting rooms, hallway, side rooms. Insert light for ceiling systems with visible support rails. Insert frame made of powder-coated sheet steel. Die-cast aluminum housing. Plastic cover made of non-yellowing plastic (PMMA), opal matt. Operating device (LED converter) external via plug connection. With connecting cable between light and LED converter 250 mm. Light source (LED) included in delivery. Energy efficiency class A+

Property Value
Max. System power: 30 W
Rated luminous flux according to IEC 62722-2-1: 3550 lm
Suitable for number of lamps: 1
Length: 595 mm
Width: 595 mm
Height/depth: 6 mm
Protection rating (IP): IP40
Protection class: II
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: aluminum
Color temperature: 3000 K
Impact resistance: IK06
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Rated service life L80/B10 at 25 °C: 50000 h
Suitable for wall mounting: no
Voltage type: AC
With motion detector: no
Beam angle: extremely wide beam >80°
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 35 °C
Socket: other
Connection type: Plug-in terminal
With operating device: yes
Cover material: Opal plastic
Light distributor: without
Installation height/depth: 43 mm
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: yes
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for strip light configuration: no
Suitable for pendant suspension: no
Suitable for surface mounting: no
Suitable for emergency lighting: no
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: no
DMX dimming: no
Dimming DSI: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (integrated in the device): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
DALI dimming: no
Mains voltage modulation dimming: no
Trailing edge dimming: no
Phase control dimming: no
Programmable dimming: no
RF dimming: no
Sine wave reduction dimming: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Suitable for lamp power: 30 W
Luminaire luminous efficacy: 119 lm/W
Power factor: 0.90
Wiring type: Termination
Number of poles: 2
Conductor cross-section: 1.50 mm²

Characteristics

HABToledo 35W 3000K 595x595x49
ManufacturerRZB
HAN901591.002
GTIN4051859156727
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-13550lm
Rated ambient temperature according to IEC62722-2-1-20 to 35 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width595 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth43 mm
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for lamp power30W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth6 mm
Power factor0.90
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy119lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorWithout
Light distributionSymmetrical
Length595 mm
Max. system performance30W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK06
IP protection)IP40
Protection class (NEMA)Other
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
