RZB 901734.003.2.76 TX-Move/62W-927 597x190x3 LED recessed luminaire

RZB 901734.003.2.76 TX-Move/62W-927 597x190x3 LED recessed luminaire

In stock

SKU: 942411

Price on request

€311.20

€0

Overview

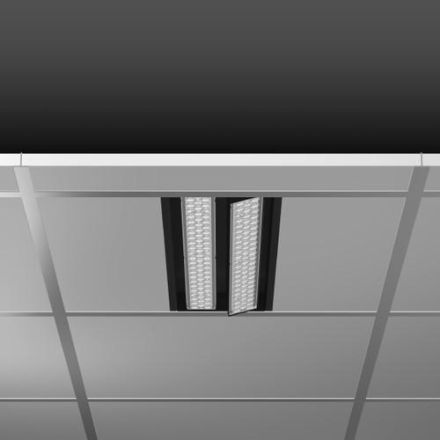

Insert/recessed surface spotlight. Housing made of powder-coated sheet steel. Can be pivoted vertically by 2x90°. Highly efficient LED units with optimal light control thanks to precise lens optics made of clear plastic (PC). Special microstructures reduce yellow fringing. Asymmetrical light distribution. Suitable for insertion in module 600 grid ceilings. Includes connected operating device in a separate device box. Suitable for through-wiring. MultiLumen: The luminous flux of the luminaire can be adjusted in 3 levels. Accessories: Installation frame for mounting in suspended ceilings.

Property	Value
Max. System power:	62 W
Rated luminous flux according to IEC 62722-2-1:	3850 lm
Housing color:	black
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	100 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	597 mm
Width:	190 mm
Height/depth:	39 mm
With motion detector:	no
Color temperature:	2700 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	32 to 62 W
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	EVG
Impact resistance:	IK04
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	2
Installation width:	174 mm
Installation length:	577.50 mm
Luminous flux:	3850 lm
Cover of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivoting
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	133 to 145 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	5 to 25 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	5
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	121 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABTX-Move/62W-927 597x190x3

Manufacturer

HAN901734.003.2.76

GTIN4051859935087

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13850lm

Rated ambient temperature according to IEC62722-2-15 to 25 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width190 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width174 mm

Installation height/depth100 mm

Installation length577.50 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature2700K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power32 to 62 W

Suitable for number of lamps2

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth39 mm

LED nominal current at constant current133 to 145 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy121lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3850lm

Light distributorWithout

Light distributionSymmetrical

Length597 mm

Max. system performance62W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles5

ReflectorWithout

Impact resistanceIK04

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilitySwiveling
