RZB 901735.002 TX-Move 68W-830 LED recessed light

In stock

SKU: 897696

Price on request

€277.52

€0

Overview

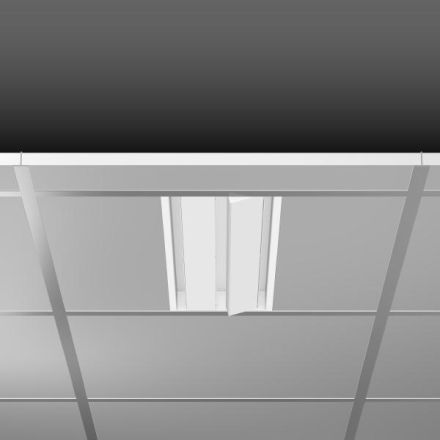

Insert/recessed surface spotlight. Housing made of powder-coated sheet steel. Can be pivoted vertically by 2x90°. Highly efficient LED units with flush opal diffuser made of non-yellowing PMMA. Light emission: symmetrical, wide beam. Suitable for insertion in module 600 grid ceilings. Includes connected operating device in a separate device box. Suitable for through-wiring. MultiLumen: The luminous flux of the luminaire can be adjusted in 3 levels. Accessories: Installation frame for mounting in suspended ceilings.

Property	Value
Max. System power:	68 W
Rated luminous flux according to IEC 62722-2-1:	4850 lm
Housing color:	white
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	100 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	597 mm
Width:	190 mm
Height/depth:	39 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	35 to 68 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of lamps:	2
Installation width:	174 mm
Installation length:	577.50 mm
Luminous flux:	4850 lm
Covering the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current with constant current:	146 to 159 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Light output:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	5 to 25 °C
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	139 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

Total harmonic distortion (THD)0.20

HABTX Move 68W-830

Manufacturer

HAN901735.002

GTIN4051859923572

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14850lm

Rated ambient temperature according to IEC62722-2-15 to 25 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width190 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width174 mm

Installation height/depth100 mm

Installation length577.50 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power35 to 68 W

Suitable for number of lamps2

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth39 mm

LED nominal current at constant current146 to 159 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy139lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4850lm

Light distributorWithout

Light distributionSymmetrical

Length597 mm

Max. system performance68W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilitySwiveling
