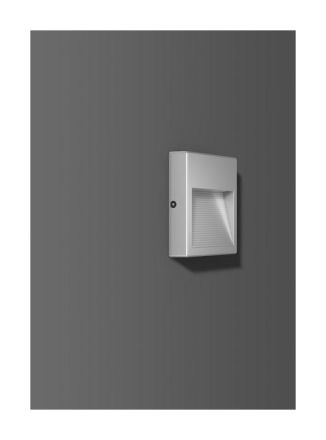

HAB5W 3000K 120x120x24
HAN581632.004
GTIN4051859113751
Covering the luminaire with thermal insulation material possibleYes
Connection typeScrew terminal
Type of wiringDiploma
Execution of the gridWithout
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-155lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width120 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for lamp power4W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorSilver
Glow wire test according to IEC 60695-2-11960 °C - 30 s
Height/Depth24 mm
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy14lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorWithout
Light distributionAsymmetrical
Length120 mm
Max. system performance4W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK09
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialGlass transparent
Housing materialAluminum
