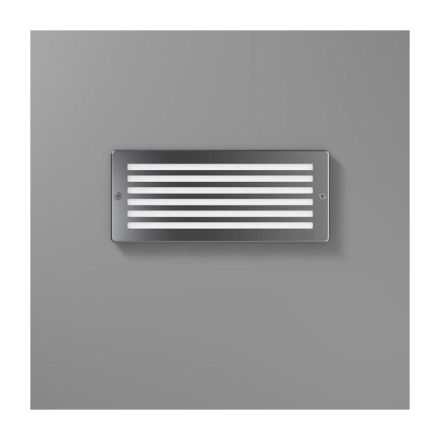

RZB 641305.000.1 4.4W 4000K 236x100x70 LED recessed wall light

RZB 641305.000.1 4.4W 4000K 236x100x70 LED recessed wall light

In stock

SKU: 529180

Price on request

€206.49

€0

Overview

Wall and stair recessed lights. Housing made of die-cast aluminum, suitable for direct installation. The use of the recessed housing is strongly recommended. Cover made of impact-resistant plastic (polycarbonate), opal. Cover frame or slatted cover made of stainless steel or powder-coated die-cast aluminum. Graduated luminous flux to avoid glare. Various light colors to choose from. Housing made of powder-coated die-cast aluminum. Cover made of plastic (polycarbonate), opal, impact-resistant. With slatted frame made of stainless steel. Light source (LED) included in delivery. Operating device (LED converter) built-in. With second cable entry for mains forwarding. Order recessed housing separately as recommended accessory! Energy efficiency class A++

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	110 lm
Suitable for number of lamps:	1
Length:	236 mm
Width:	100 mm
Height/depth:	5 mm
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	stainless steel
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	other
Installation height/depth:	70 mm
Without dimming function:	yes
Installation width:	85 mm
Light emission:	direct
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	228 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Suitable for lamp power:	6 W
Luminaire luminous efficacy:	19 lm/W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HAB4.4W 4000K 236x100x70

Manufacturer

HAN641305.000.1

GTIN4051859141228

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-1110lm

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width85 mm

Installation height/depth70 mm

Installation length228 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for lamp power6W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorStainless steel

Height/Depth5 mm

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy19lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionAsymmetrical

Length236 mm

Max. system performance6W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK10

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
