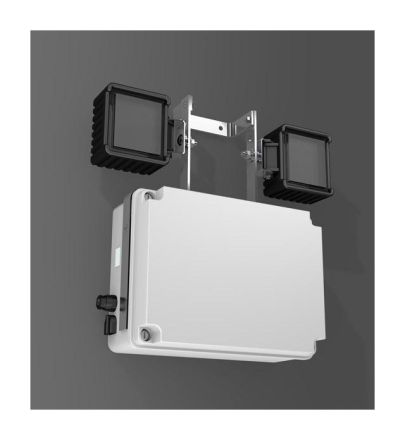

RZB 672196.009 2x18W 395x470x128 Stest B1h LED spotlight

In stock
SKU: 531013
€773.09
Into a basketIn the basketGo

Overview

Protection class IP 54, dust and splash-proof. Robust design. Suitable for high rooms. Ideal for portable safety lighting. Automatic self-test as standard. Long-lasting, low-maintenance LED technology. Maintenance-free lead battery. Housing made of gray plastic (polycarbonate). Spotlight heads can be swiveled to illuminate escape routes or areas. Self-monitoring (auto-test) with diagnostics and control programs for charging and consumer functions. With carrying handle, suitable for mobile use or for permanent installation. LED lamps and Pb batteries included.

Property Value
Housing color: gray
Protection type (IP): IP54
Protection class: I
Voltage type: AC
Color temperature: 6500 K
Length: 395 mm
Width: 128 mm
Height/Depth: 470 mm
Max. System performance: 0.10 W
Battery type: Lead
Nominal operating time: 1 h
Luminous flux in standby mode: 2400 lm
Light source: LED not replaceable
Impact resistance: IK03
Socket: without
Nominal voltage: 230 V
With remote switch connection: no
Cover material: transparent glass
With light source: yes
Monitoring device: automatic self-test
Mounting type: Wall mounting/ceiling mounting
Housing material: plastic
Feed-in: decentralized (single battery)
Function: Escape route lighting
With pictogram: no
Suitable for number of lamps: 2
Number of lamp heads: 2
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: 5 to 35 °C
Type of wiring: suitable for through wiring
Connection type: Connection cable with system plug

Characteristics

HAB2x18W 395x470x128 Stest B1h
ManufacturerRZB
HAN672196.009
GTIN4051859169505
Connection typeConnecting cable with system plug
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-15 to 35 °C
Width128 mm
Color temperature6500K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps2
Housing colorGray
Height/Depth470 mm
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Length395 mm
Max. system performance0.10W
With light sourceYes
Mounting typeWall mounting/ceiling mounting
Nominal voltage230V
Impact resistanceIK03
IP protection)IP54
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialGlass transparent
Housing materialPlastic
