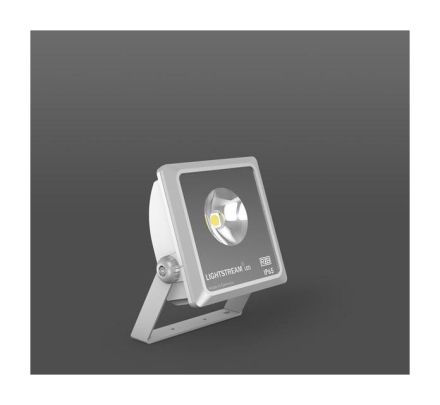

RZB 672316.114 Lightstream 10W LED spotlight

In stock

SKU: 532966

Price on request

€300.56

€0

Overview

Made in Germany. Seawater-resistant coating. Second cable inlet for looping through. Reduced connected load with the same luminous flux as the switchable version to save energy. COB LEDs with interchangeable socket, optionally light color 830 or 840. LED service life 50,000 h (L80, B10). Mounting accessories for mast and wall mounting available. Suitable for use in the food and beverage industry. Safety light for central supply in permanent circuit. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Bracket made of powder-coated aluminum. Cover made of clear safety glass (ESG), ceramic coated. COB LED with interchangeable socket. Reflector made of pure aluminum, silver-colored, high-gloss anodized. With diaphragm valve as standard to prevent condensation. With plug-in connection terminal 3x 2.5 mm. Suitable for a maximum cable diameter of d 13 mm. Second cable entry for network forwarding as an accessory. Energy efficiency class A++

Property	Value
Housing color:	Silver
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Color temperature:	3000 K
Length:	194 mm
Width:	109 mm
Height/Depth:	226 mm
Max. System performance:	10 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	1050 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK07
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent glass
With light source:	yes
Monitoring device:	without
Mounting type:	chain
Housing material:	aluminum
Suitable for marking type:	other
Feed:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	42 to 45 mA
Light distributor:	Reflector
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	yes
Rated ambient temperature according to IEC62722-2-1:	-25 to 50 °C
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
