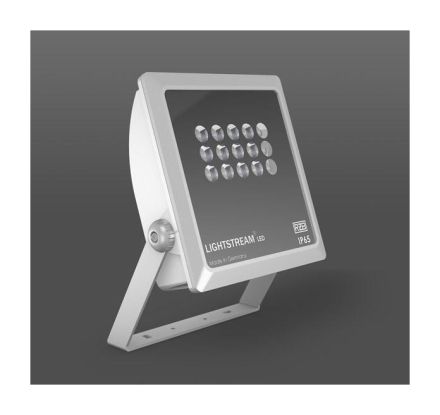

RZB 721717.004.76 51W 3000K 267x142x 336 dim. DALI LED spotlights

RZB 721717.004.76 51W 3000K 267x142x 336 dim. DALI LED spotlights

In stock

SKU: 528791

Price on request

€439.28

€0

Overview

Made in Germany. 3 different light distributions: narrow spot, medium spot and flood. Fixed installation or mobile with plug and 5 m connection cable. Emergency lighting option via central battery available. Second cable inlet for looping through. Reduced connected load with the same luminous flux as the switchable version to save energy. DALI version with increased luminous flux. COB LEDs with interchangeable socket, optional light color 830 or 840. LED service life 50,000 h (L80, B10). Mounting accessories for mast and wall mounting available. Suitable for use in the food and beverage industry. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Bracket aluminum powder-coated. Cover safety glass (ESG) clear. With black metal lamination. High-performance optics with individual refractors. Narrow beam light distribution. With diaphragm valve as standard to prevent condensation. With plug-in connection terminal 3x 2.5 mm. Suitable for maximum cable diameter d 13 mm. Second cable duct for mains forwarding as an accessory. Energy efficiency class A

>no

Property	Value
Max. System power:	51 W
Rated luminous flux according to IEC 62722-2-1:	2500 lm
Housing color:	Silver
Housing material:	Aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	267 mm
Width:	142 mm
Height/depth:	336 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	51 W
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK07
Luminaire with limited surface temperature 'D-mark':	yes
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	2500 lm
Cover material:	Transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light colour:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	yes
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	212 to 232 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Refractor lens
Light output:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 50 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	50 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Photobiological safety according to EN 62471:	RG1

Characteristics

Total harmonic distortion (THD)0.10

HAB51W 3000K 267x142x 336 dim. DALI

Manufacturer

HAN721717.004.76

GTIN4051859140788

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleNarrow beam 11-20°

Rated luminous flux according to IEC 62722-2-12500lm

Rated ambient temperature according to IEC62722-2-1-25 to 50 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width142 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power51 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth336 mm

LED nominal current at constant current212 to 232 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy50lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2500lm

Light distributorRefractor lens

Light distributionSymmetrical

Length267 mm

Max. system performance51 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles5

ReflectorOther

Impact resistanceIK07

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
